ASUS ROG Strix GeForce RTX 4080 16GB GDDR6X – Review

Husky
Husky
The new ASUS ROG STRIX  GeForce RTX 4080 16GB GDDR6X is the highest segment in 4080 affair with a 3.5-slot design and triple-fan cooler, near-identical to the released ASUS TUF Gaming GeForce RTX™ 4080 16GB graphics card. Underneath is the  Ada Lovelace AD102 GPU on TSMC’s custom 4nm node, with 8GB of super-fast GDDR6X memory.
The ASUS ROG Strix RTX 4080 OC features the same “Vented Exoskeleton” cooling solution that made the RTX 4090 ROG Strix stand out as the most premium custom-design, which is among the largest and heavies air-cooling solutions out there. The card offers factory overclocked speeds of 2.62 GHz compared to 2.50 GHz reference, and all of the premium aesthetic and functional features as the RTX 4090 ROG Strix, with a few handy inclusions such as case fan headers and dual-BIOS.
Model ASUS ROG Strix GeForce RTX™ 4080 16GB GDDR6X
Graphic Engine NVIDIA® GeForce RTX™ 4080
Bus Standard PCI Express 4.0
OpenGL OpenGL®4.6
Video Memory 16GB GDDR6X
Clock Speed OC mode: 2535 MHz
Default mode: 2505 MHz (Boost Clock)
CUDA Core 9728
Memory Speed 22.4 Gbps
Memory Interface 256-bit
I/O Interface Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Dimensions 357.6 x 149.3 x 70.1mm
Recommended PSU 750W
Slot 3.5 Slot



The back of the ROG STRIX GeForce RTX 4080 shows a large backplate fitting to the card which helps to cool and stiffens the card so as to not flex around. ASUS did redesign the backplate with ROG design. Dimensions of the card are 36.0 x 15.0 cm, and it weighs 2440 g

The ROG STRIX RTX 4080 OC is fitted with 16 Gigabyte GDDR6X memory, it runs at 22.4 Gbps (effective data rate) and that is a lot of bandwidth. The IO panel shows three DisplayPort 1.4a, and two HDMI 2.1a connectors that will bring 8K 60 Hz HDR to a single HDMI cable. No more USB type-C Virtual Link connector.

The card uses the new 12+4 pin ATX 12VHPWR connector, which is rated for up to 600 W of power draw. An adapter cable from 3x PCIe 8-pin is included (which is rated for up to 450 W). Of course the 4x 8-pin to 16-pin adapter cables from RTX 4090 will also work with the RTX 4080, but the card won’t need that much power.

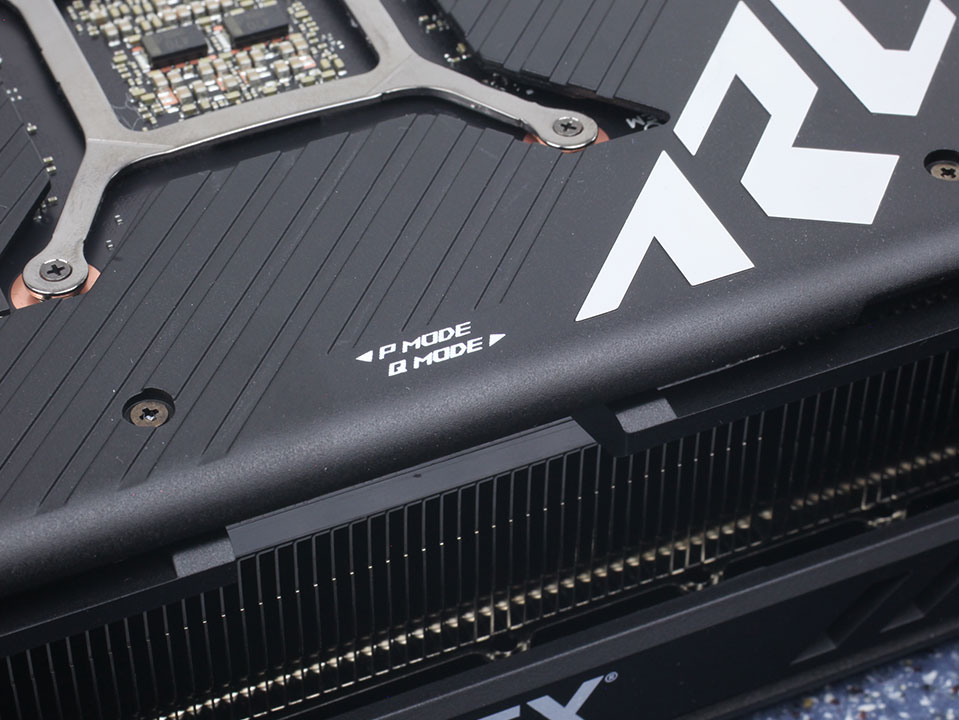

The card has a dual BIOS. There is a switch on the back plate of the card, in different BIOS versions (they are called Performance mode and Quiet mode – productive and quiet modes) different fan operation curves are set.

The two side fans spin counter clockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.



Benchmark:

ASUS ROG STRIX RTX 4080 16GB GDDR6X  is the high range graphics card in Nvidia Ada Lovelace AD102-based segment. As such, our graphics workstation, based on an ASUS Prime X670E-Pro Wifi motherboard and AMD 7900X 12 cores processor.  The ram we will be using is  XPG 6000mhz- 32 memory kit. ADATA XPG GAMMIX S50 Lite 1TB M.2 NVMe SSD is used as well to run with benchmark. On the Comparison, we will be testing 3 GPUs to run side by side to see perform better.

Model DIY System
Motherboard ASUS X670E-Pro WIFI
CPU AMD Ryzen 9 7900X – 12 Cores/24 Threads
Cooling EKWB-AIO 360 D-RGB
Ram XPG DDR5 6000Mhz
SSD ADATA XPG GAMMIX S50 Lite 1TB M.2 NVMe
OS Microsoft Windows 11 Pro 22H2
Bios 821



Model Graphic Engine Bus Standard Video Memory GPU Clock Boost GPU Clock Memory Clock Resizeable Bar Driver
ASUS TUF Radeon RX 7900 XT 20GB GDDR6 RX 7900 XT Navi31 PCI Express 4.0 20GB GDDR6 2129 2499 2500 Enable 23.1.1
ROG Strix GeForce RTX™ 4080 16GB GDDR6X RTX4080 AD103 PCI Express 4.0 16GB GDDR6X 2205 2625 1400 Enable 528.02
ZOTAC GAMING GeForce RTX 2080 AMP Extreme RTX 2080 TUF104 PCI Express 3.0 8GB GDDR6 1515 1875 1800 Disable 528.02



GPUZ



3Dmark Advanced Edition

3DMark includes everything you need to benchmark your PC and mobile devices in one app. Whether you’re gaming on a smartphone, tablet, notebook, or a desktop gaming PC, 3DMark includes a benchmark designed specifically for your hardware.

3DMark Advanced Edition
Model Speed Way Fire Strike Ultra Night Raid Port Royal Time Spy Extreme Wild Life Extreme
ASUS TUF 7900XT 5256 17312 69031 14188 12444 45430
ASUS ROG RTX4080 7294 17626 66264 18298 13365 61063
Zotac RTX2080 AMP 2177 6352 56695 6133 5105 Error



Ashes of the Singularity Escalation

As a real-time strategy title, Ashes is all about responsiveness during both wide open shots but also concentrated battles. With DirectX12 at the helm, the ability to implement more draw calls per second allows the engine to work with substantial unit depth and effects that other RTS titles had to rely on combined draw calls to achieve, making some combined unit structures ultimately very rigid.



BaseMark GPU

Basemark GPU is a professional evaluation tool to evaluate and compare graphics performance across mobile and desktop platforms. Uniquely, it supports all major graphics APIs and operating systems.

BaseMark GPU
Model Average Minimum Maximum Overall Score
ASUS TUF 7900XT 233 123 357 23264
ASUS ROG RTX4080 298 245 430 29806
Zotac RTX2080 AMP 102 72 153 10158

Heaven Benchmark

Extreme performance and stability test for PC hardware: video card, power supply, cooling system. Check your rig in stock and overclocking modes with real-life load! Also includes interactive experience in a beautiful, detailed environment.

Heaven Benchmark
Model FPS Minimum FPS Maximum FPS Score
ASUS TUF 7900XT 306.3 11.3 631.8 7716
ASUS ROG RTX4080 393.1 71.2 801.1 9902
Zotac RTX2080 AMP 159.8 56 390 4026

SuperPosition

Extreme performance and stability test for PC hardware: video card, power supply, cooling system. Check your rig in stock and overclocking modes with real-life load! Also includes interactive experience in a beautiful, detailed environment.

SuperPosition Benchmark
Model Average Minimum Maximum Score
ASUS TUF 7900XT 143.17 121.7 173.58 19141
ASUS ROG RTX4080 161.74 88.8 208.92 21624
Zotac RTX2080 AMP 55.16 46.09 71.07 7375

Batman Arkham Origins

Taking place before the rise of Gotham City’s most dangerous criminals, the game showcases a young and unrefined Batman as he faces a defining moment in his early career as a crime fighter that sets his path to becoming the Dark Knight.

Batman Arkham Origins
Model Average Minimum Maximum
ASUS TUF 7900XT 407 313 773
ASUS ROG RTX4080 178 114 254
Zotac RTX2080 AMP 183 136 255



GTA V

This is a benchmark of GTA 5 (Grand Theft Auto V)

GTA V
Model Average Minimum Maximum
ASUS TUF 7900XT 89.87 30.94 246.96
ASUS ROG RTX4080 96.57 38.24 114.49
Zotac RTX2080 AMP 57.08 16.1 150.13



FarCry 6

Far Cry 6 supports ray tracing at launch, with the ability to enable DXR reflections and DXR shadows. But because DXR shadows are kind of pointless and not worth the performance hit, we haven’t tested with them enabled, but I have taken a look at DXR reflections, so we’ll look at that shortly using supported hardware.

FarCry 6
Model Average Minimum Maximum
ASUS TUF 7900XT 114 56 144
ASUS ROG RTX4080 107 85 144
Zotac RTX2080 AMP 45 25 66



Sleeping Dog

In this open world game, you play the role of Wei Shen, an undercover cop trying to take down the Triads from the inside out. You’ll have to prove yourself worthy as you fight your way up the organization, taking part in brutal criminal activities without blowing your cover.
Torn between your loyalty to the badge and a criminal code of honor, you will risk everything as the lines between truth, loyalty and justice become permanently blurred.

Sleeping Dog
Model Average Minimum FPS Maximum FPS
ASUS TUF 7900XT 49.9 49.2 51.4
ASUS ROG RTX4080 99.8 83.9 110.2
Zotac RTX2080 AMP 99.8 95.1 105

Ghost Recon Breakpoint

Ghost Recon Breakpoint is a military shooter set in a diverse, hostile, and mysterious open world that you can play entirely solo or in four-player co-op.

Ghost Recon Breakpoint
Model Total Score Frames Score FPS
ASUS TUF 7900XT S 22537 131
ASUS ROG RTX4080 S 26424 153
Zotac RTX2080 AMP A 12701 74

Total War WARHAMMER

Addictive turn-based empire-building with colossal, real-time battles, all set in a world of legendary heroes, giant monsters, flying creatures and storms of magical power.

Total War WARHAMMER
Model Average Minimum FPS Maximum FPS
ASUS TUF 7900XT 133 67 185
ASUS ROG RTX4080 137.8 60 226
Zotac RTX2080 AMP 75.8 52 99

Furmark

100% Full load on GPU for 10 minutes

Furmark – 10 minutes
Model Maximum Temperature
ASUS TUF 7900XT 62
ASUS ROG RTX4080 60
Zotac RTX2080 AMP 76

ASUS ROG Strix GeForce RTX 4080

2269
9.5

Quality

9.8/10

Value

9.0/10

Design

9.8/10

Performance

9.5/10

Pros

  • High Performance
  • Dual Bios
  • Extreme low temperature
  • Support for AV1 hardware encode and decode
  • Excellent Design with RGB Lighting

Cons

  • Some games perform worst than AMD 7900XT
  • Heavy
  • Huge Heat Sink
  • Expensive
