Acer Aspire A14-61M Review – Lightweight Design Meets Everyday Performance

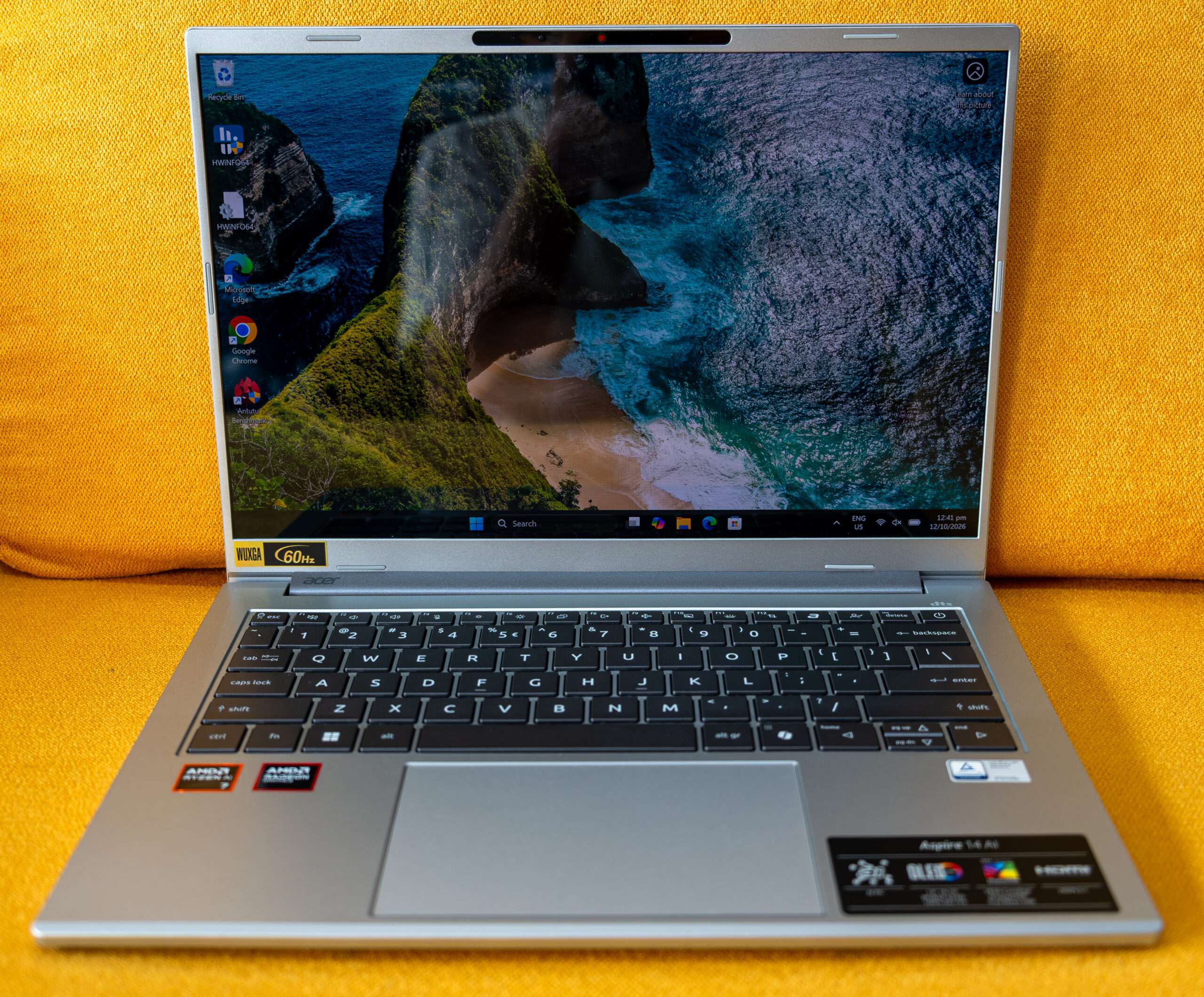

The Acer Aspire A14-61M-R8C0 is a laptop designed for users who need a balance of performance, portability, and everyday productivity. Powered by an AMD Ryzen AI 7 350 processor, paired with 16GB of RAM and a 512GB SSD, this laptop offers a capable hardware configuration for daily computing, office applications, multitasking, and general entertainment.

The laptop features a WUXGA display with a resolution of 1920 × 1200 pixels, providing a 16:10 aspect ratio that offers additional vertical screen space compared to a conventional Full HD display. This is particularly useful when working with documents, browsing websites, or managing multiple applications, allowing users to view more content on the screen.

With its combination of AMD processing power, generous memory capacity, and fast SSD storage, the Acer Aspire A14-61M aims to deliver a smooth and responsive computing experience for students, professionals, and everyday users.

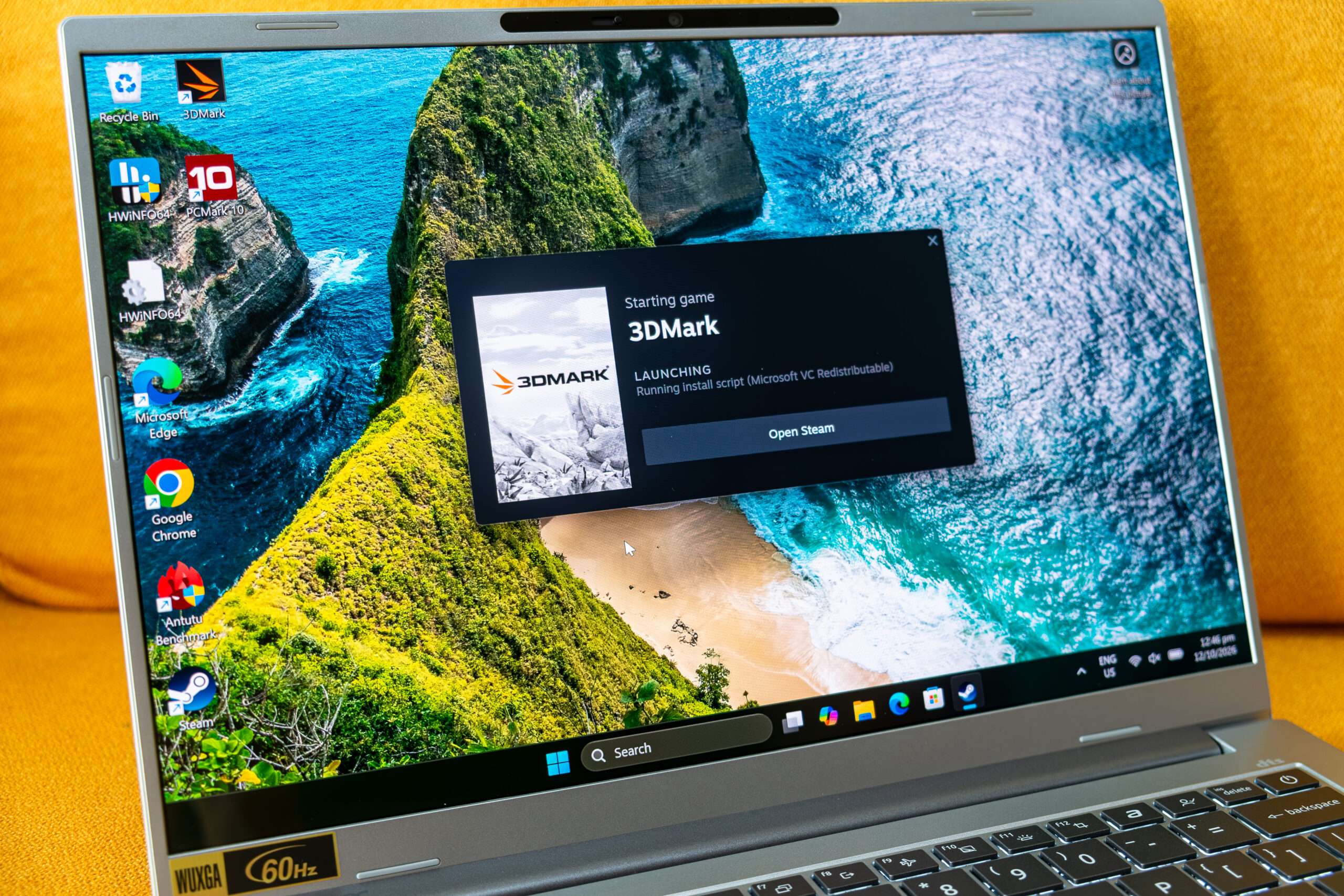

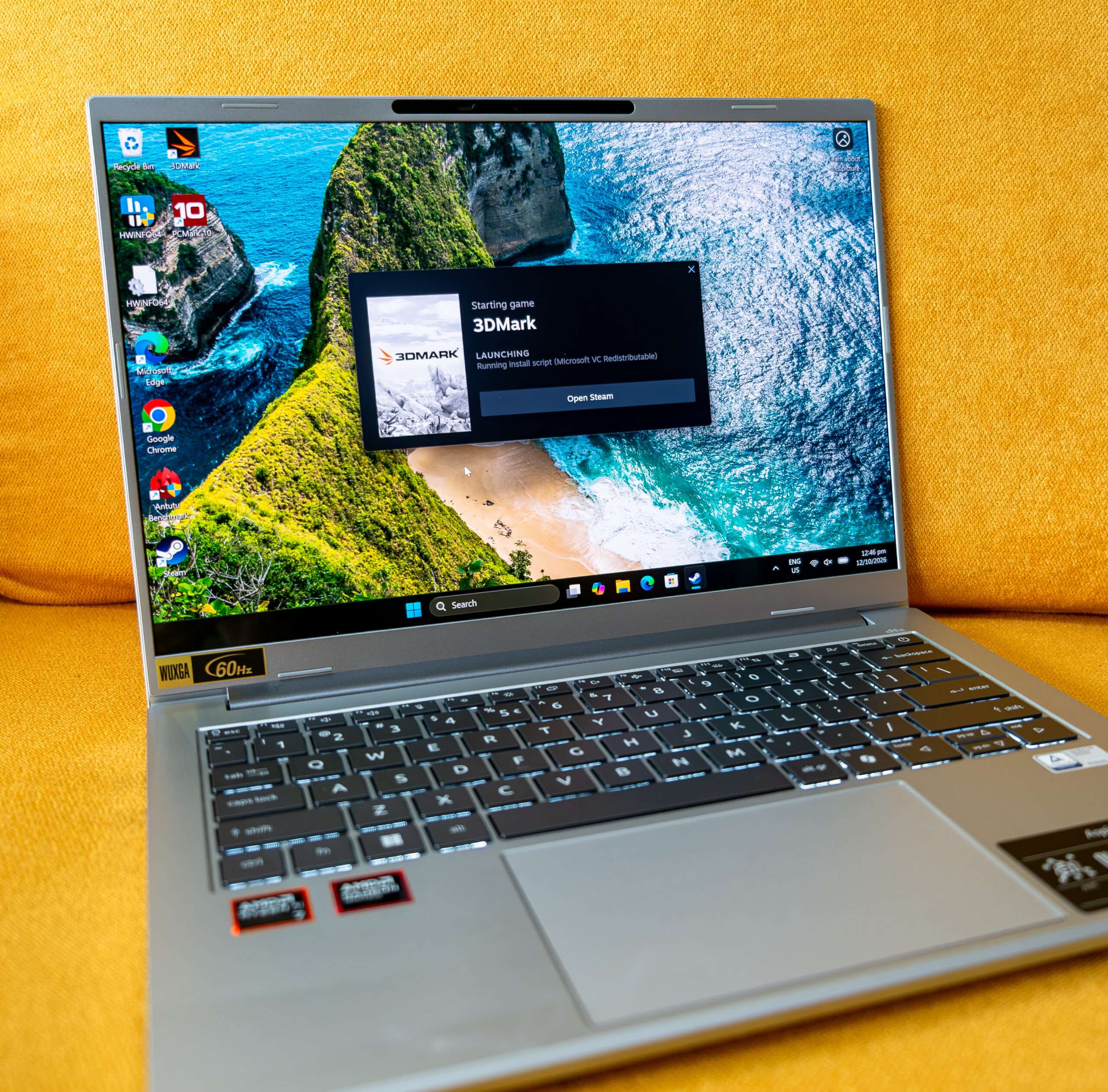

The Acer Aspire A14-61M features a WUXGA OLED display with a resolution of 1920 × 1200 pixels and a 16:10 aspect ratio. Unlike conventional LCD panels that rely on a backlight, OLED technology allows each pixel to produce its own light, delivering deeper blacks and excellent contrast.

One of the biggest advantages of OLED technology is its ability to display rich colours and deep black levels. Since individual pixels can switch off completely when displaying black, the panel can deliver an impressive contrast ratio, making images and videos appear more vibrant and detailed.

The 1920 × 1200 resolution also provides additional vertical screen space compared with a standard Full HD display. This is particularly useful for productivity tasks such as editing documents, browsing websites, and working with spreadsheets, allowing users to view more content without scrolling as frequently.

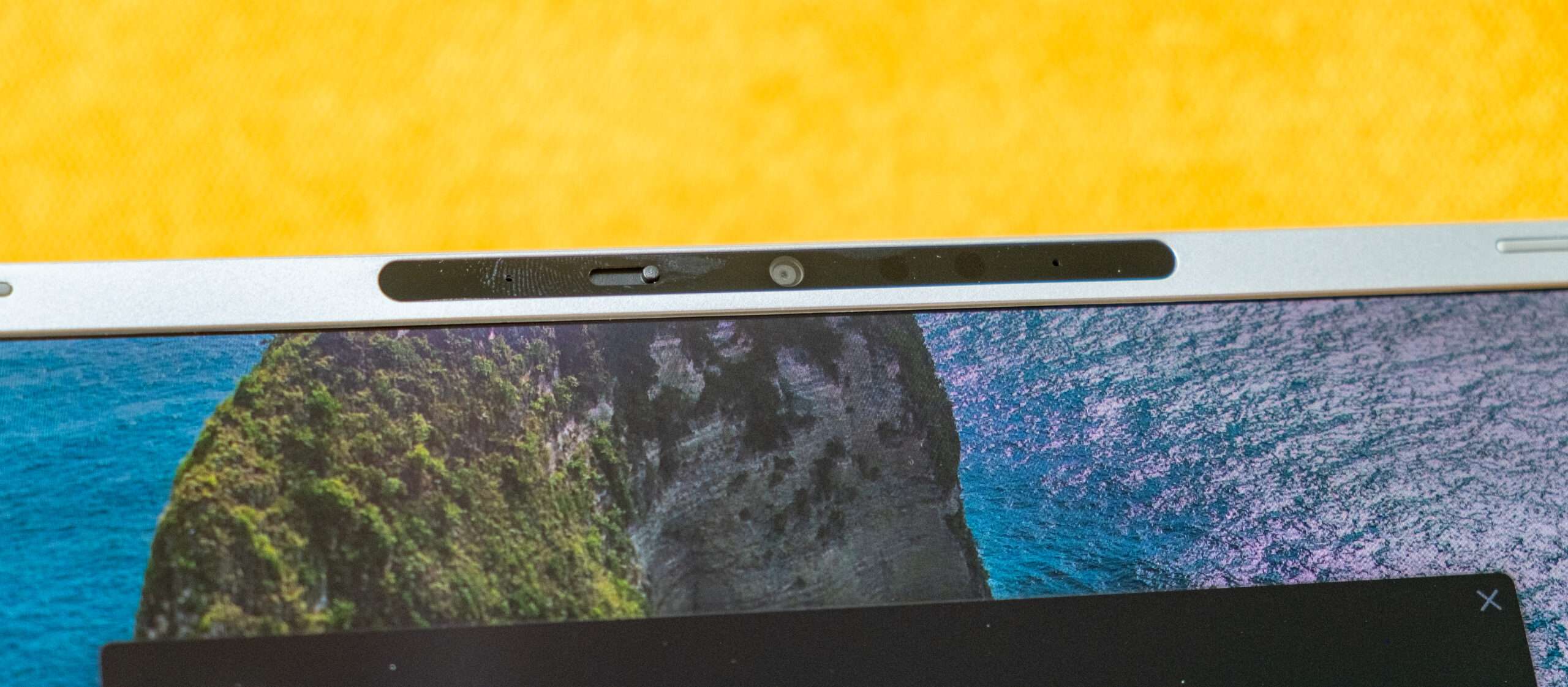

It’s comes with a front-facing camera for video conferencing, online meetings, and virtual communication. One useful feature is the physical camera privacy shutter, which allows users to slide the cover across the camera lens when it is not in use.

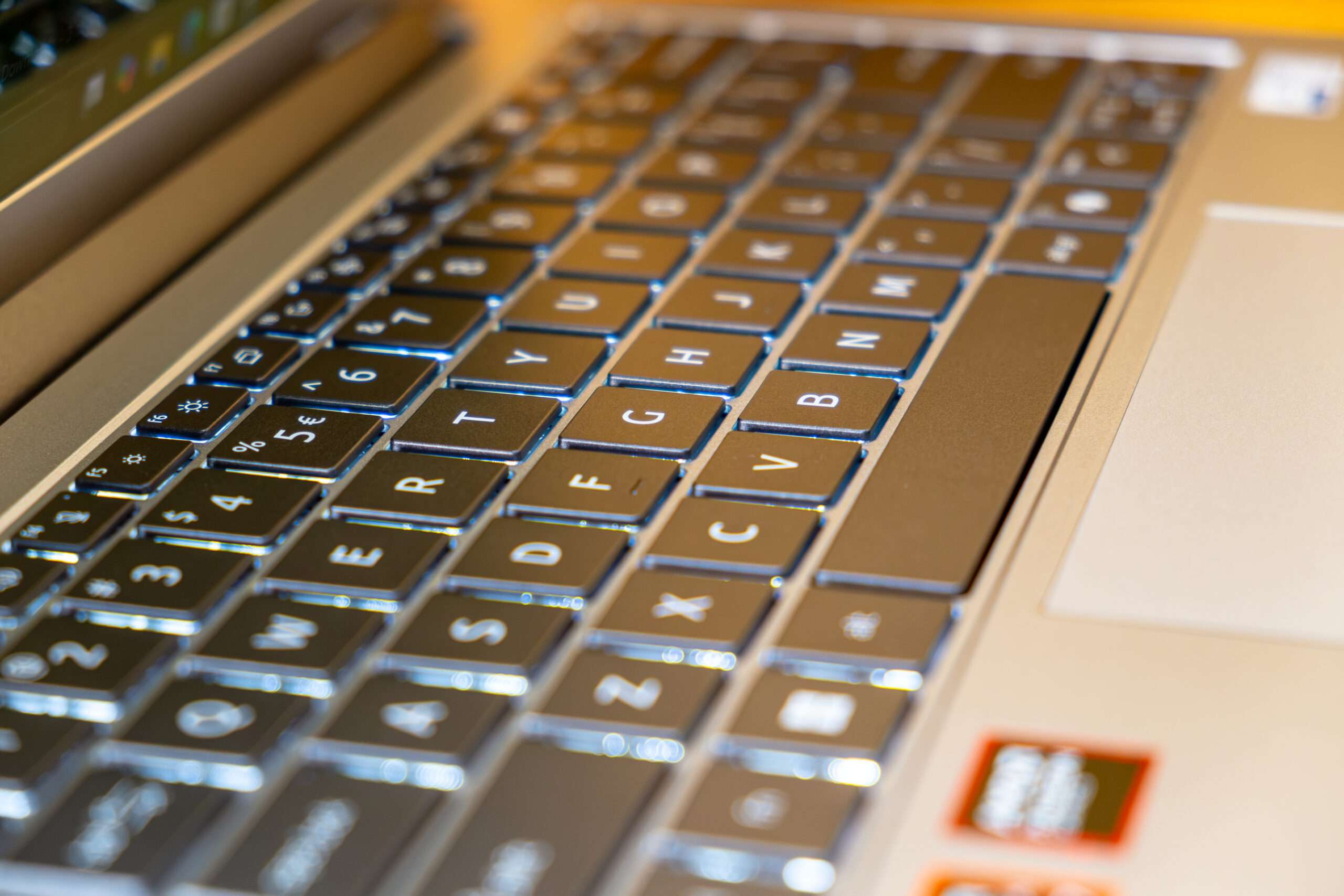

It’s features a low-profile keyboard with backlighting for comfortable typing and improved visibility in low-light environments.

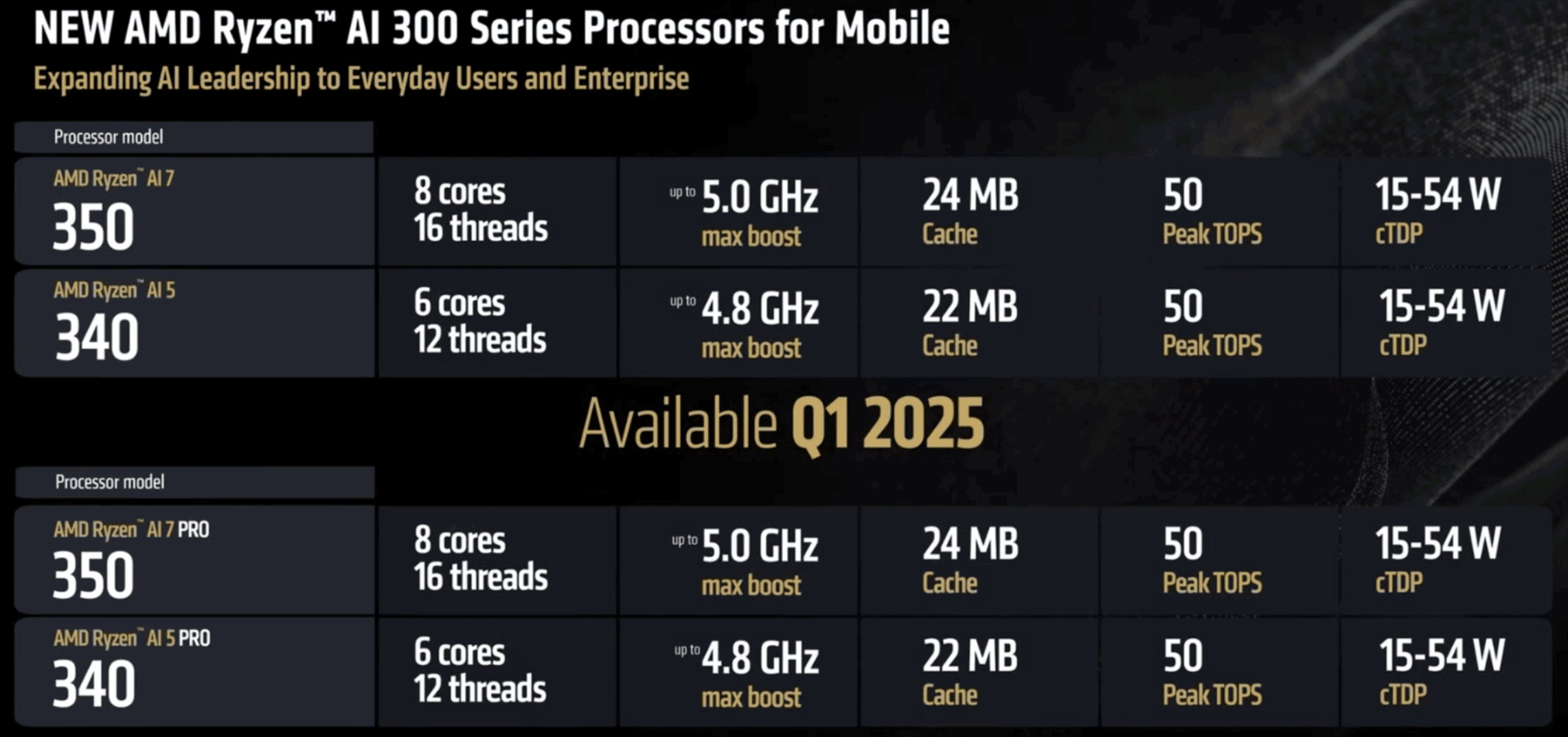

Technical Specification

	Ryzen 7 AI	Ryzen 5 AI	Ryzen 9 AI	Ryzen 9 AI	Ryzen 7 250	Ryzen 7 8845HS
	350	340	HX 370	365
Build process	TSMC 4nm FinFET
Generation	Zen 5				Zen 4	Zen 4
Codename	Krackan	Krackan	Strix	Strix	Hawk Point R	Hawk Point
TDP	15+ W	15+ W	15+ W	15+ W	15+ W	15+ W
Cores/Threads	4x Zen5, 4x Zen5c,	3x Zen5, 3x Zen5c,	4x Zen5, 8x Zen5c,	4x Zen5, 6x Zen5c,	8x Zen4/	8x Zen4/
	16 Threads	12 Threads	24 Threads	24 Threads	16 Threads	16 Threads
CPU Max Turbo	up to 5.0 GHz – Zen5,	up to 4.8 GHz – Zen5,	up to 5.1 GHz – Zen5,	up to 5.0 GHz – Zen5,	5.1 GHz	5.1 GHz
	up to 3.5 GHz – Zen5c	up to 3.54 GHz – Zen5c	up to 3.3 GHz – Zen5c	up to 3.3 GHz – Zen5c
L2+L3 Cache	24 MB	22 MB	36 MB	34 MB	24 MB	24 MB
Memory Type	DDR5-5600, LPDDR5x-8000				DDR5-5600, LPDDR5x-7500
Graphics	Radeon 860M,	Radeon 840M,	Radeon 890M,	Radeon 880M,	Radeon 780M,
	8CUs, RDNA3.5	4CUs, RDNA3.5	16CUs, RDNA3.5	12CUs, RDNA3.5	12 EUs, RDNA3
AI Engine	NPU – up to 50 TOPS	NPU – up to 50 TOPS	NPU – up to 50 TOPS	NPU – up to 50 TOPS	Total – up to 38 TOPS
	Total – up to 66 TOPS	Total – up to 80 TOPS	Total – up to 80 TOPS	Total – up to 73 TOPS

Core Feature:

• Hybrid Core Design: Features an 8-core / 16-thread layout split evenly between 4 high-performance Zen 5 cores (up to 5.0 GHz boost) and 4 energy-efficient Zen 5c compact cores (up to 3.5 GHz boost).
• Radeon 860M iGPU: Powered by the RDNA 3.5 graphical architecture, integrating 8 compute units running up to 3000 MHz. It handles video editing, multiple 4K display outputs, and casual 3D gaming smoothly without needing a dedicated GPU.
• XDNA 2 Engine: Houses a complex Neural Processing Unit (NPU) capable of hitting 50 INT8 NPU TOPS (Trillion Operations Per Second)

At its core, the laptop is powered by the AMD Ryzen™ AI 7 350 processor, featuring dedicated AI acceleration capabilities that enhance performance across productivity, creativity, and multitasking workflows. Paired with 16GB LPDDR5X memory and a fast 512 PCIe Gen4 SSD, the Acer ensures smooth responsiveness, efficient multitasking, and quick data access for both casual and demanding tasks.

Model: Acer Aspire A14-61M-R8C0 – Bios 1.29
Processor	AMD Ryzen AI 7 350 [4 Core Zen 5  + 4 Cores Zen 5c]

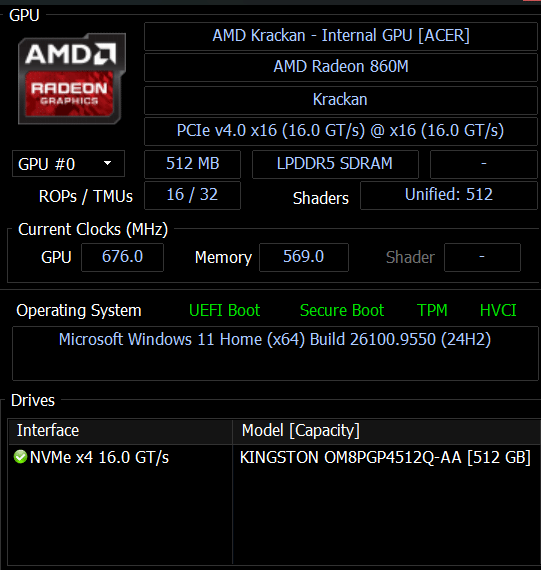

GPU	AMD Radeon 860M RDNA 3.5 8CUs 512 Stream Processor 3.0Ghz
RAM	Micron 4GBx 4 Quad Channel LPDDR5 8000MHz
SSD	Kingston 512GB PCIe 4.0 NVMe 1.4 HMB 64MB TLC NAND Flash MTBF 1.5 Million Hours
Display	14inch (1920 x 1200) WUXGA FHD 60Hz Samsung Panel: SDC41B5
Network	Mediatek Filogic 330 RZ616 WIFI 6E 160Mhz up to 2.2Gbps  & Bluetooth 5.2
I/O Ports	1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps) 1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed up to 10Gbps) 1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps), 1x 3.5mm Combo Audio Jack 1x HDMI 2.1 TMDS
Battery	65WHrs Li-ion
Weight	1.25Kg
Price	SGD 1399 /   1 Years Local Warranty

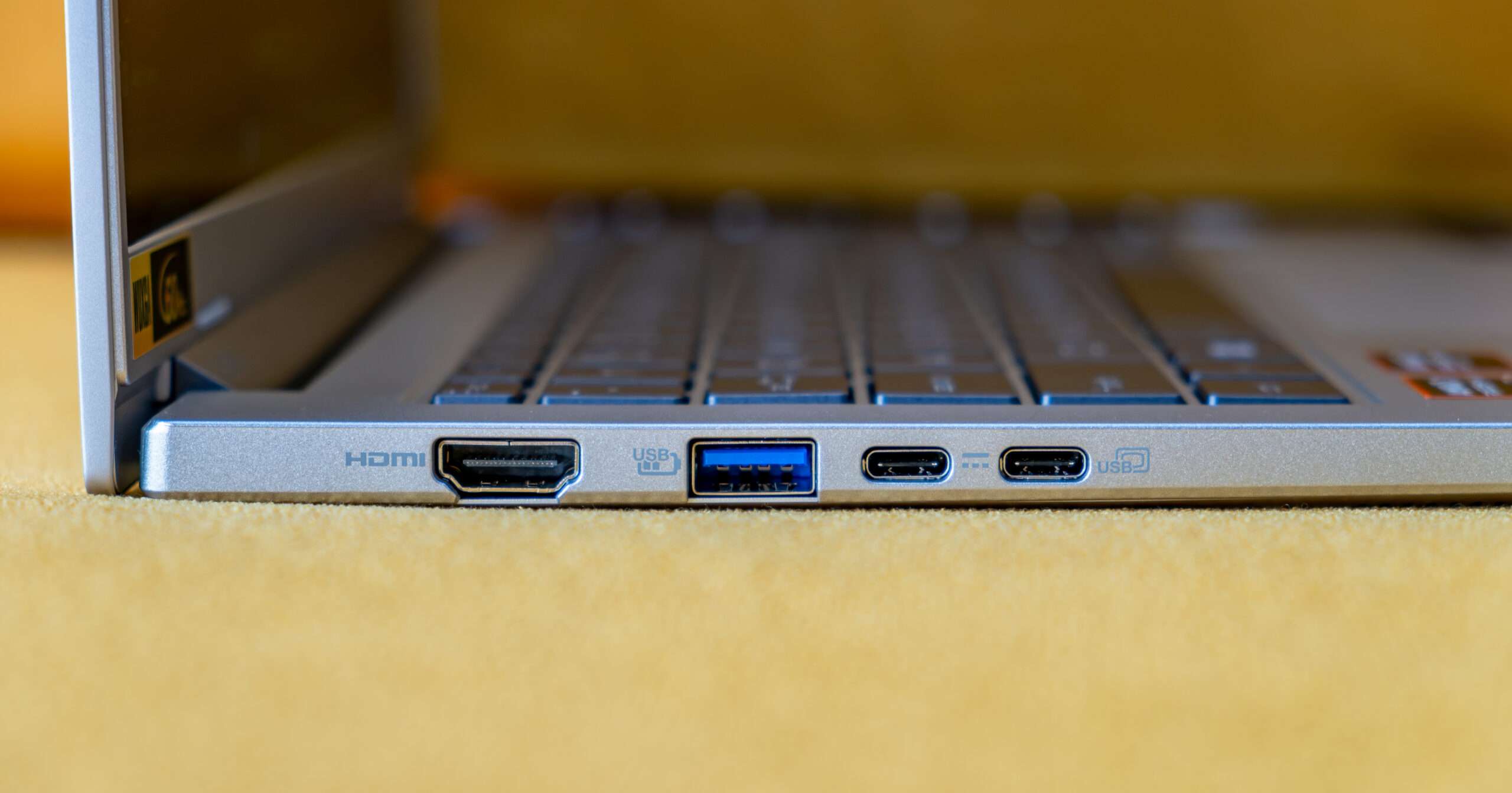

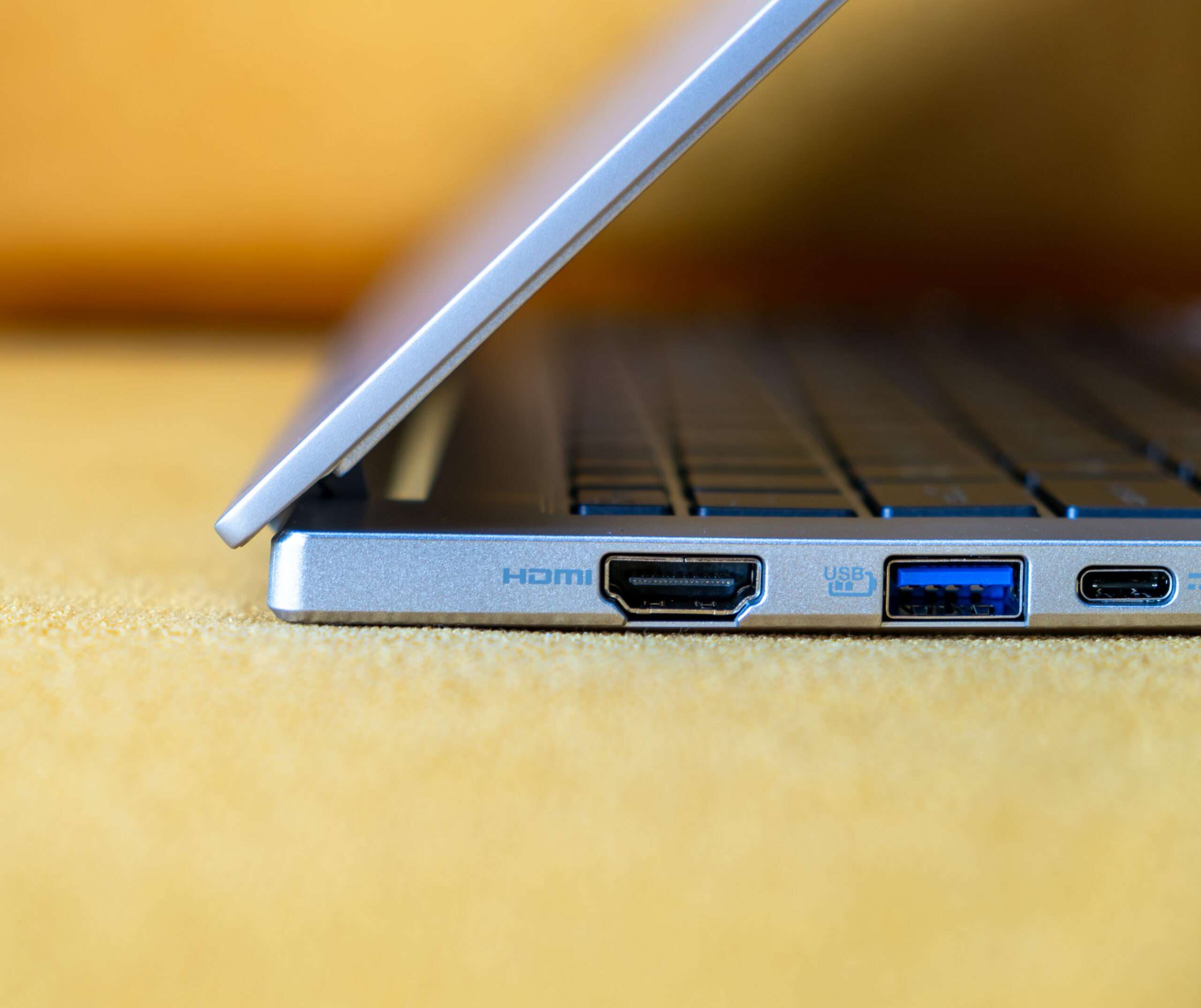

Left-Side I/O Ports

The left side of the Acer Aspire A14-61M features a HDMI 2.1 port.

For high-speed connectivity, the laptop includes one USB4 Gen 3 Type-C port with data transfer speeds of up to 40Gbps, alongside one USB 3.2 Gen 2 Type-C port supporting speeds of up to 10Gbps. Both Type-C ports support display output and Power Delivery, providing flexibility for compatible peripherals and charging accessories.

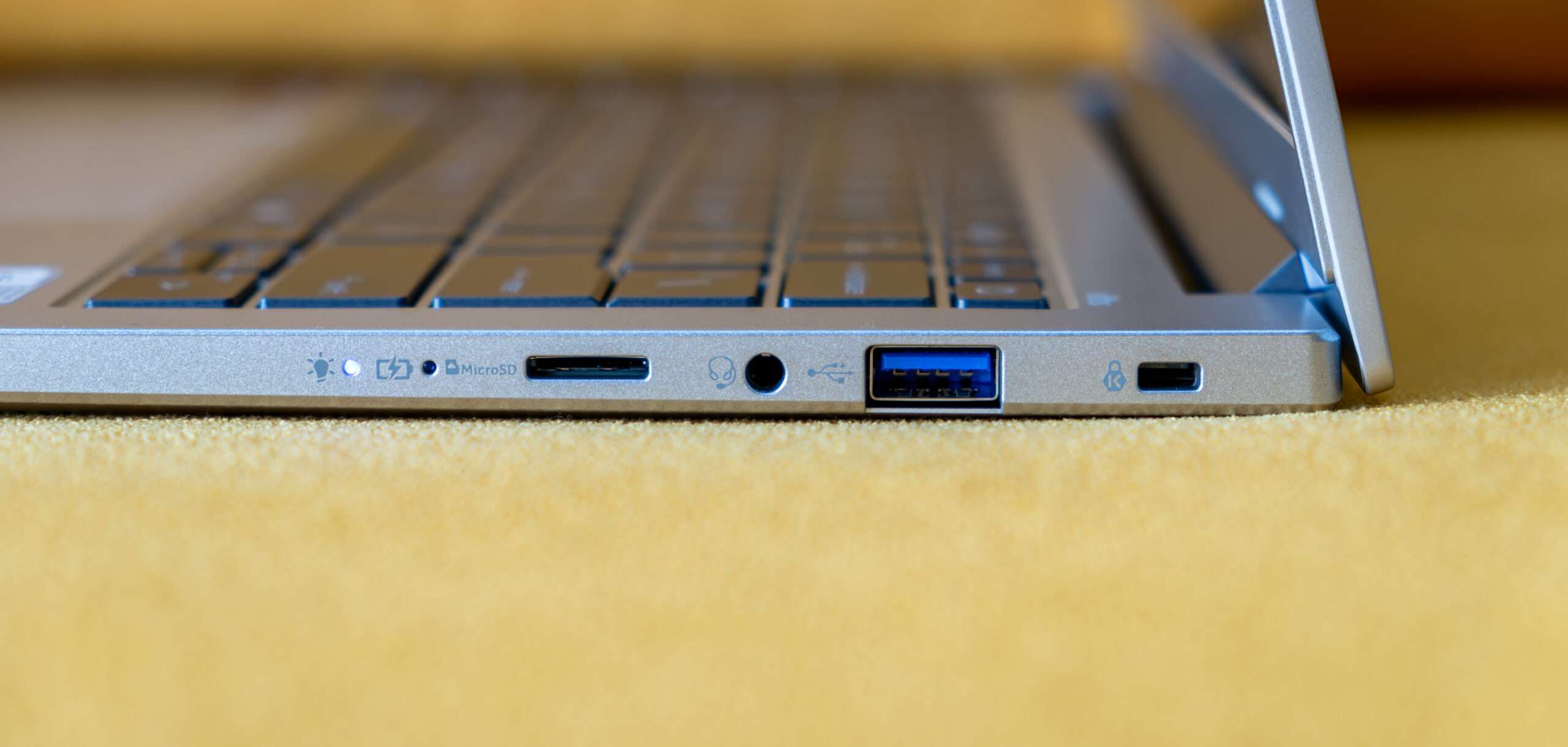

Right- Side I/O Ports

The right side of the Acer Aspire A14-61M features one USB 3.2 Gen 1 Type-A port, supporting data transfer speeds of up to 5Gbps for connecting peripherals, MicroSD card and a 3.5mm combo audio jack.

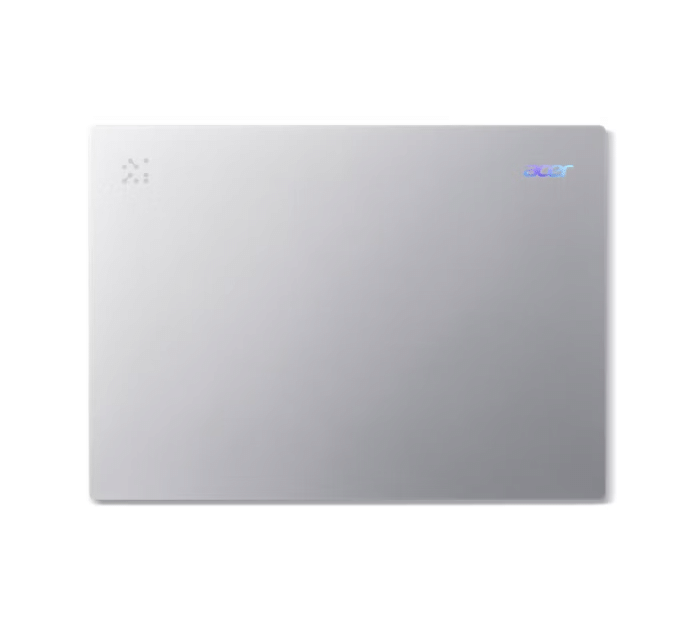

it’s slim and modern design that makes it suitable for users who value portability. Its streamlined profile gives the laptop a clean appearance while making it easier to carry between home, the office, and school.

The slim chassis also helps the laptop maintain a professional look without unnecessary bulk. Whether placed on a desk or packed into a laptop bag, its design is well suited to everyday computing and mobile productivity.

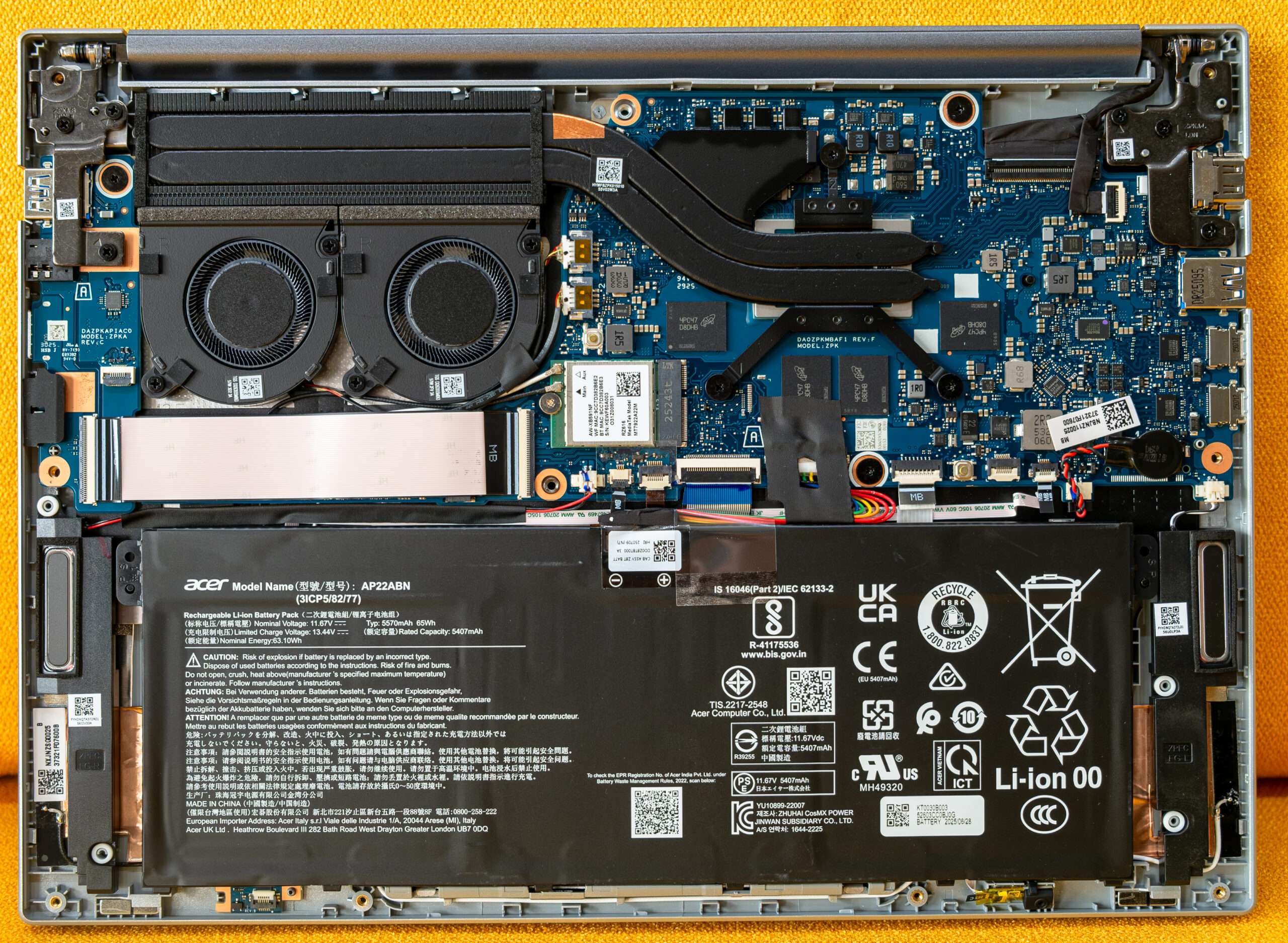

Dismantle & Component:

In this section, we will carefully disassemble the Acer Aspire A14-61M to examine its internal layout and hardware components. This teardown will provide a closer look at the laptop’s internal construction, motherboard, battery, and other key components, offering insight into its engineering and overall design.

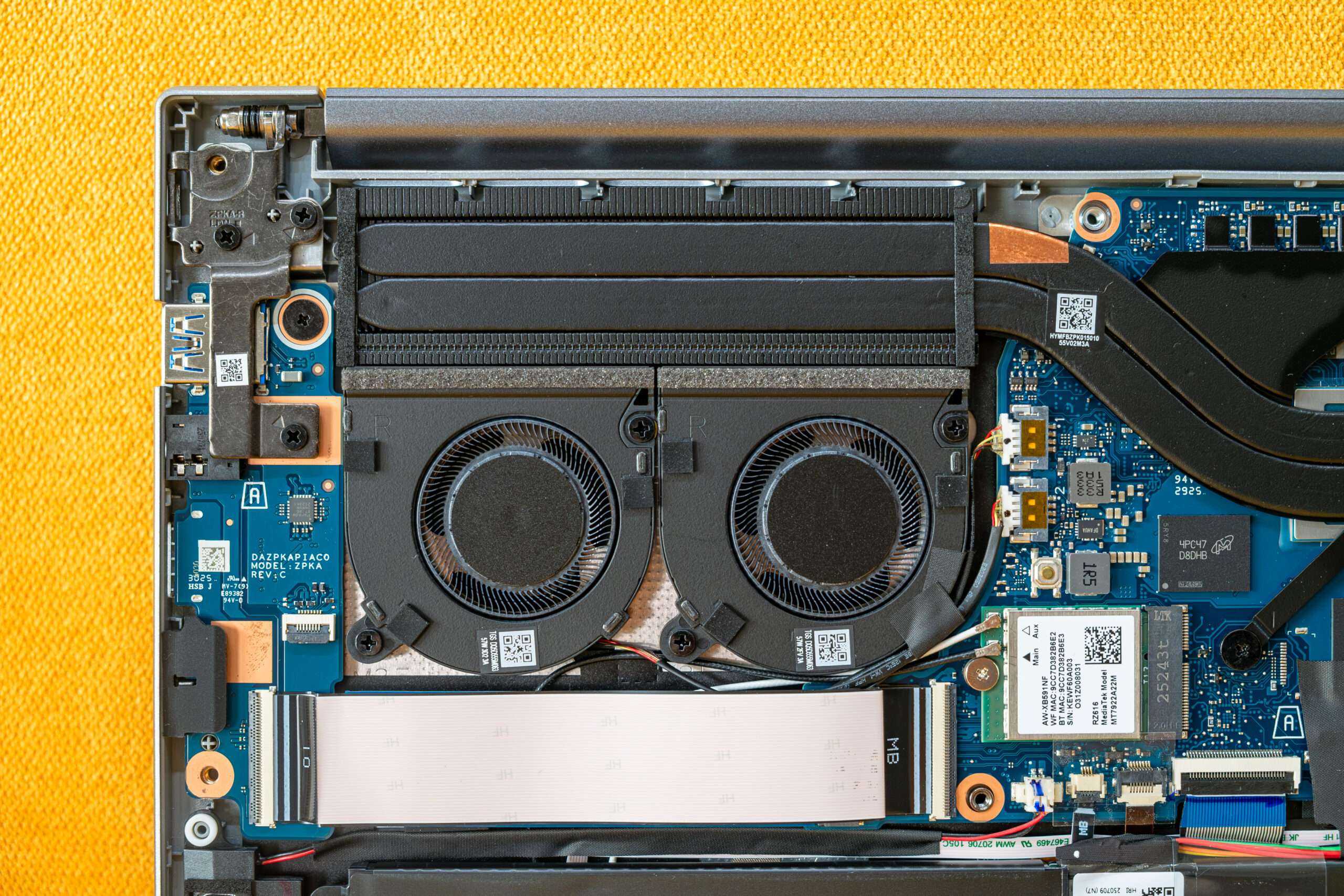

Dual-Fan Cooling System

Despite its slim design, the Acer Aspire A14-61M features a dual-fan cooling system designed to help dissipate heat generated by the internal hardware. This cooling arrangement is important for maintaining stable operating temperatures, particularly when the AMD Ryzen AI 7 350 processor is handling demanding workloads.

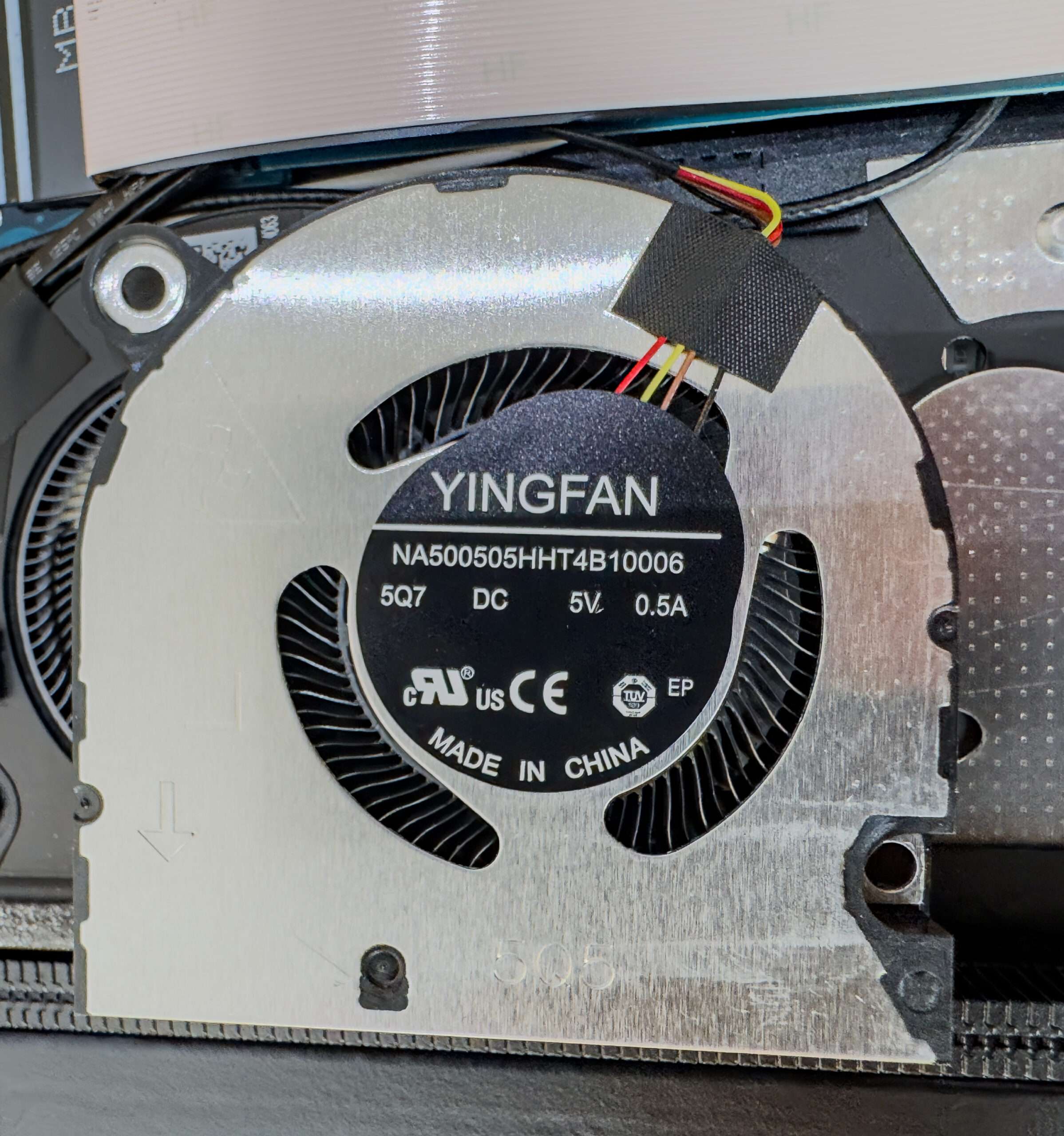

The Yingfan NA500505HHT4B1006 is an internal laptop CPU cooling fan manufactured by Yingfan.

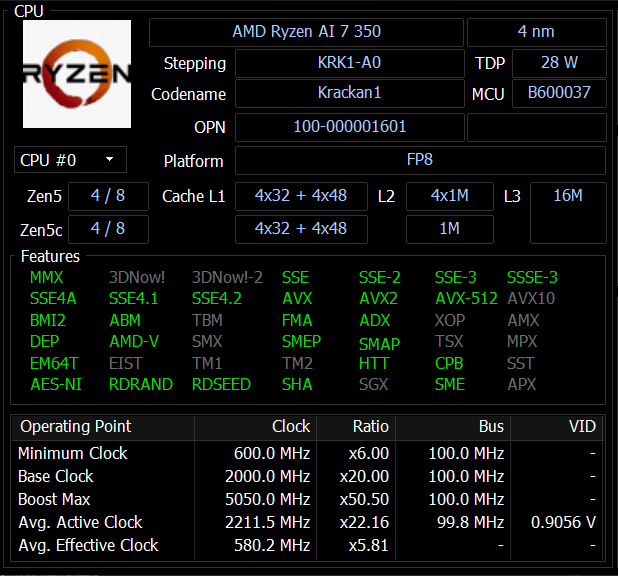

AMD Ryzen AI 350 Accelerated Processing Unit (APU)

• Cores: 8 (4 Zen 5 and 4 Zen 5c cores)
• Threads: 16
• Base Clock: 2 GHz
• Boost Clock: Up to 5.0 GHz
• L3 Cache: 16 MB
• TDP: 28 W
• Architecture: Zen 5 / Zen 5c
• Integrated Graphics: Radeon 860M

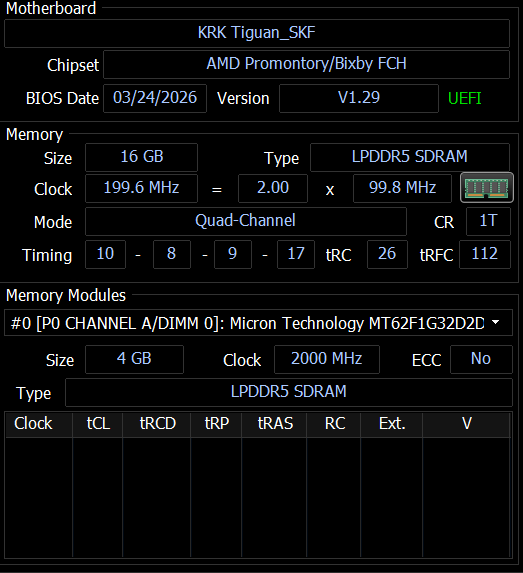

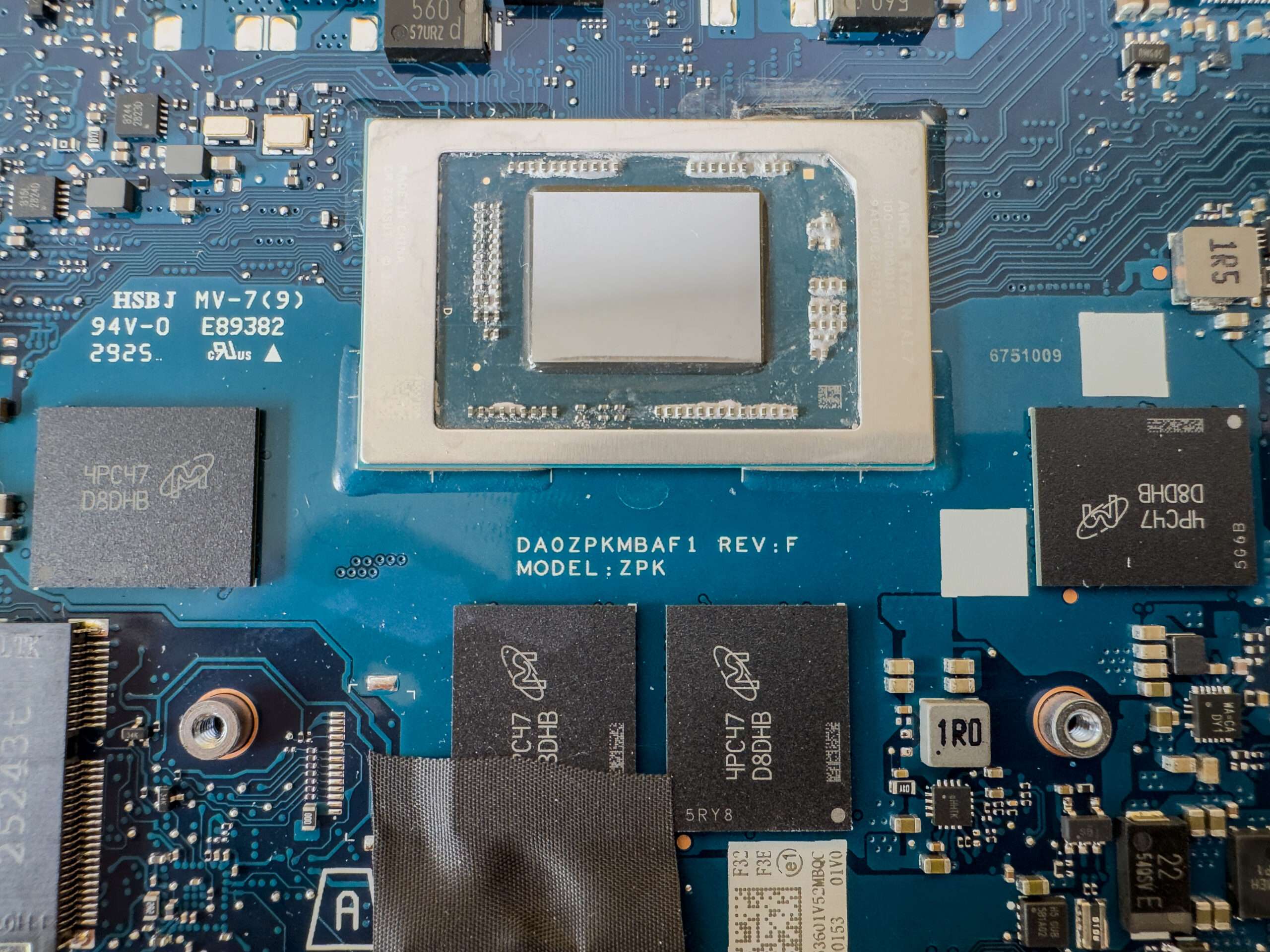

Below, you can see four Micron LPDDR5 DRAM chips operating at 8000MT/s.”

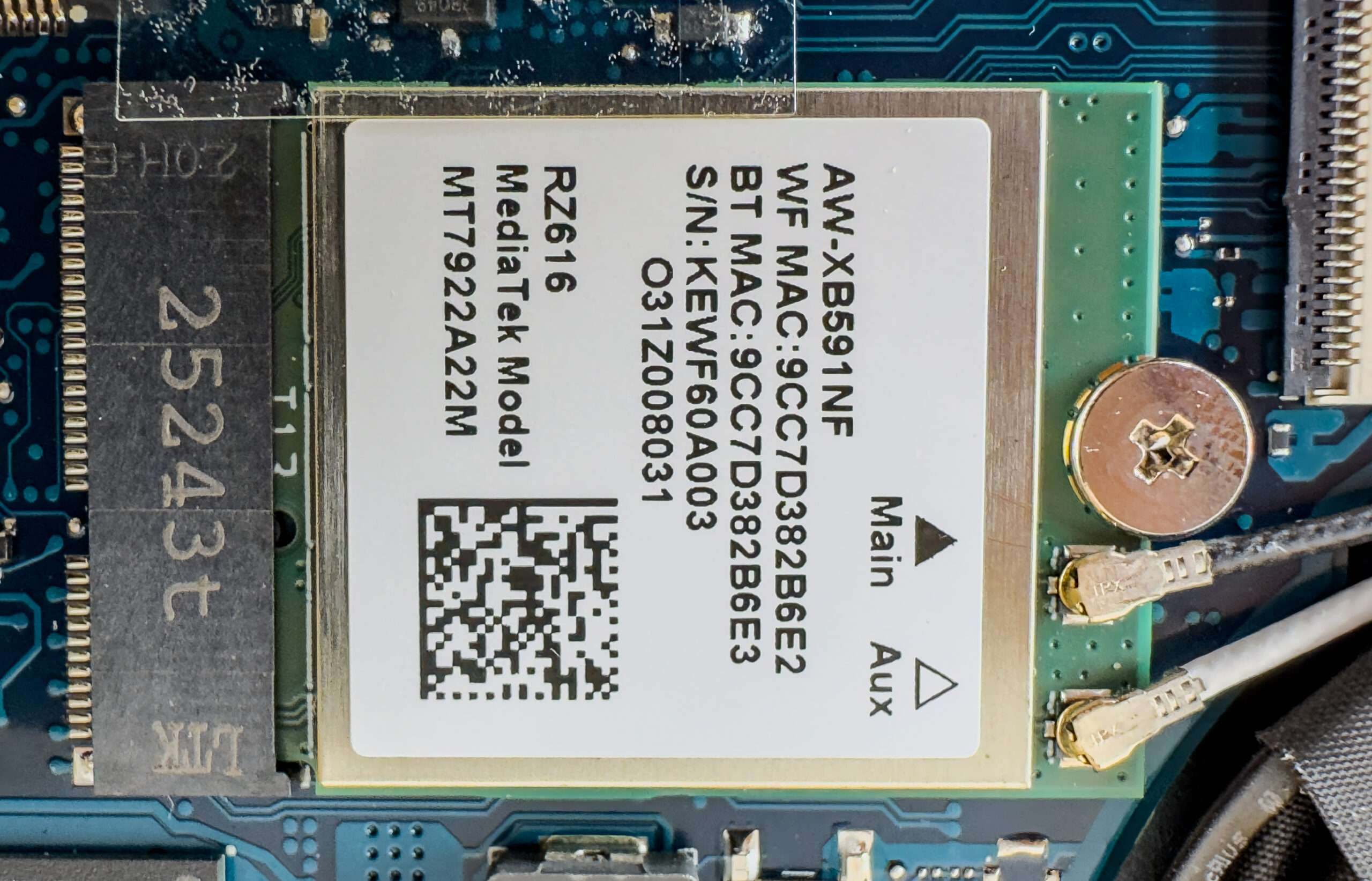

The MediaTek Filogic 330-based AMD RZ616 is a Wi-Fi 6E wireless networking solution designed to deliver fast, reliable, and low-latency wireless connectivity. It supports tri-band operation across the 2.4GHz, 5GHz, and 6GHz frequency bands, with support for 160MHz channel bandwidth to provide higher wireless throughput.

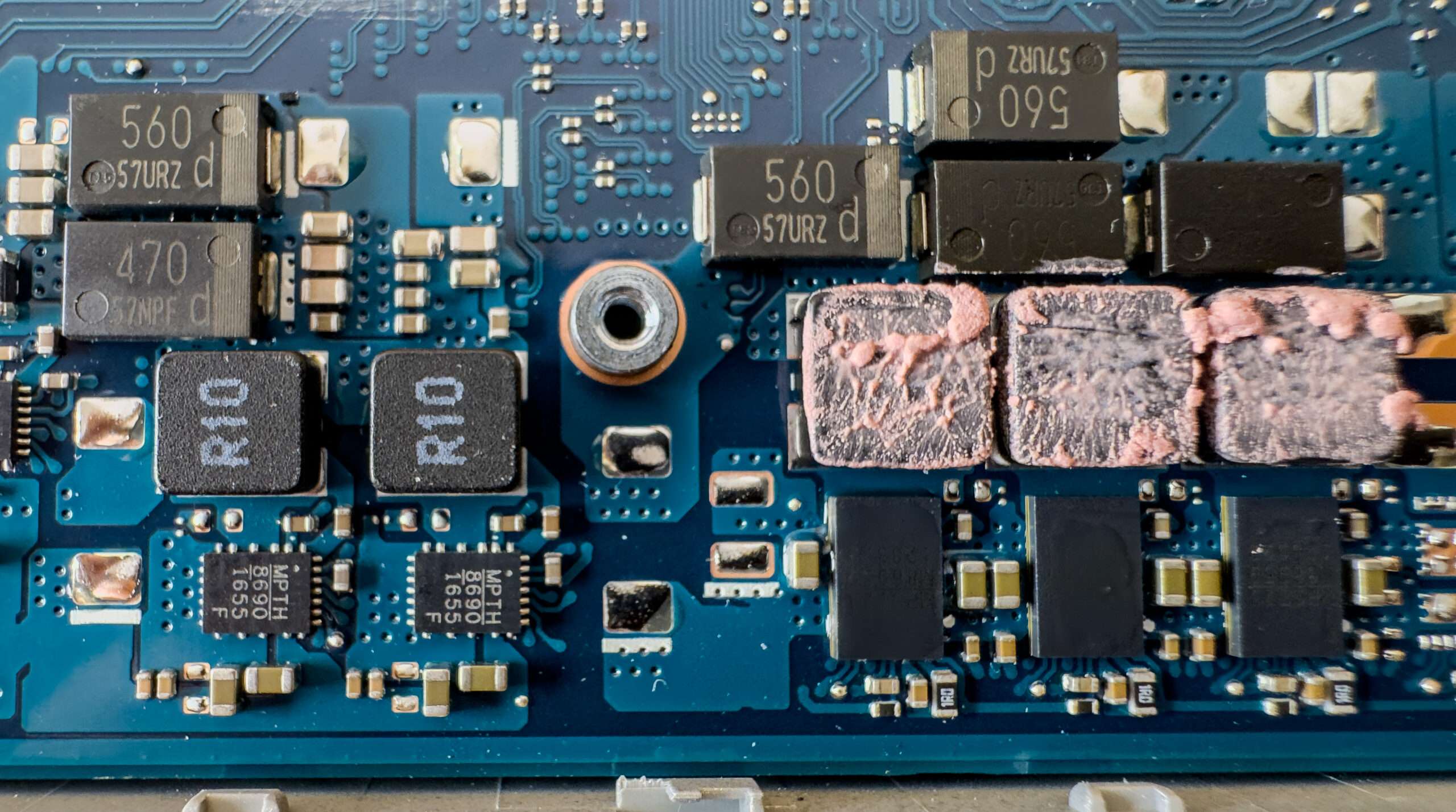

Power Phase Design

The processor power supply circuit is designed according to the 3+2 +1 scheme (a total of 6 phases: 3 on VCore (processor core), 2 on iGPU (integrated graphics core), 1 on SoC (Ryzen I/O)

• Three VCore phase channel has a superferrite choke and M86959 from Monolithic 50A Power Systems (MPS)
• Two VDD_MISC [IGPU] phase channel has a superferrite choke and MP8690 50A from Monolithic Power Systems (MPS)
• One  SoC [Ryzen I/O] phase channel has a superferrite choke and MP8690 50A  from Monolithic Power Systems (MPS)

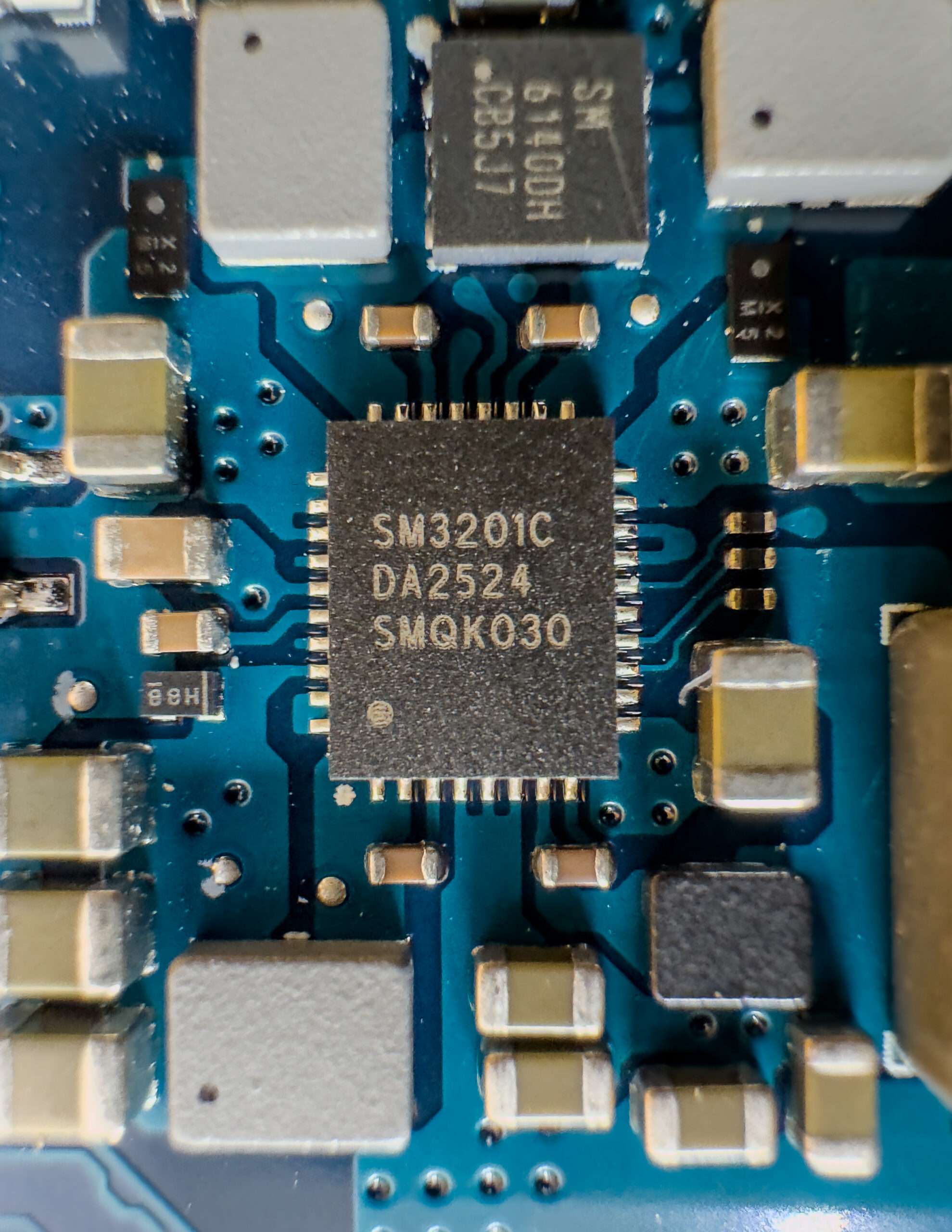

The SM3201C is dual-output switching regulator and power management integrated circuit (IC) primarily designed for blacklight AMOLED displays.

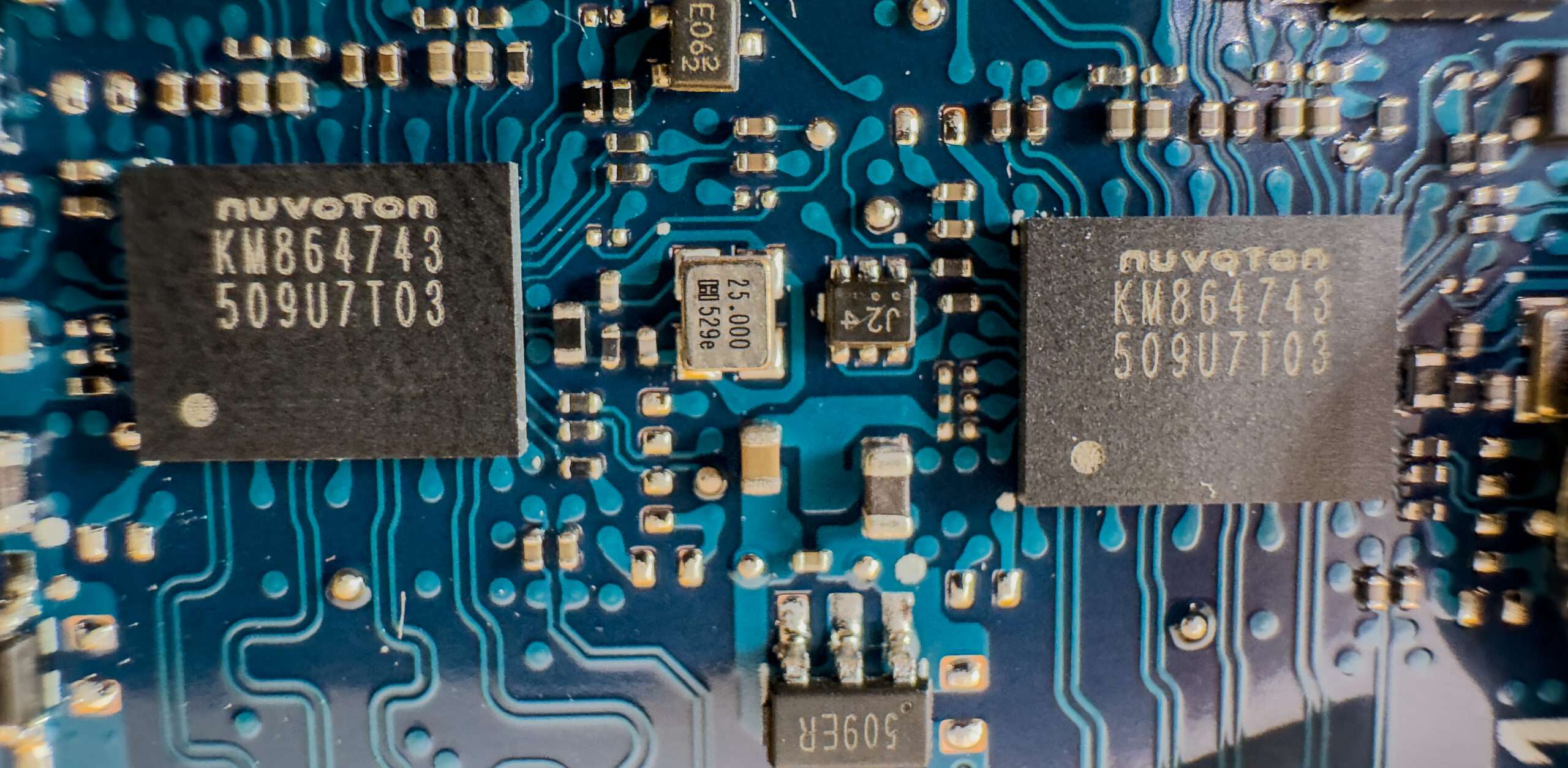

The two Nuvoton KM864743 is a multi-protocol, bidirectional USB4 Re-Timer IC designed for USB 4 Type-C connections

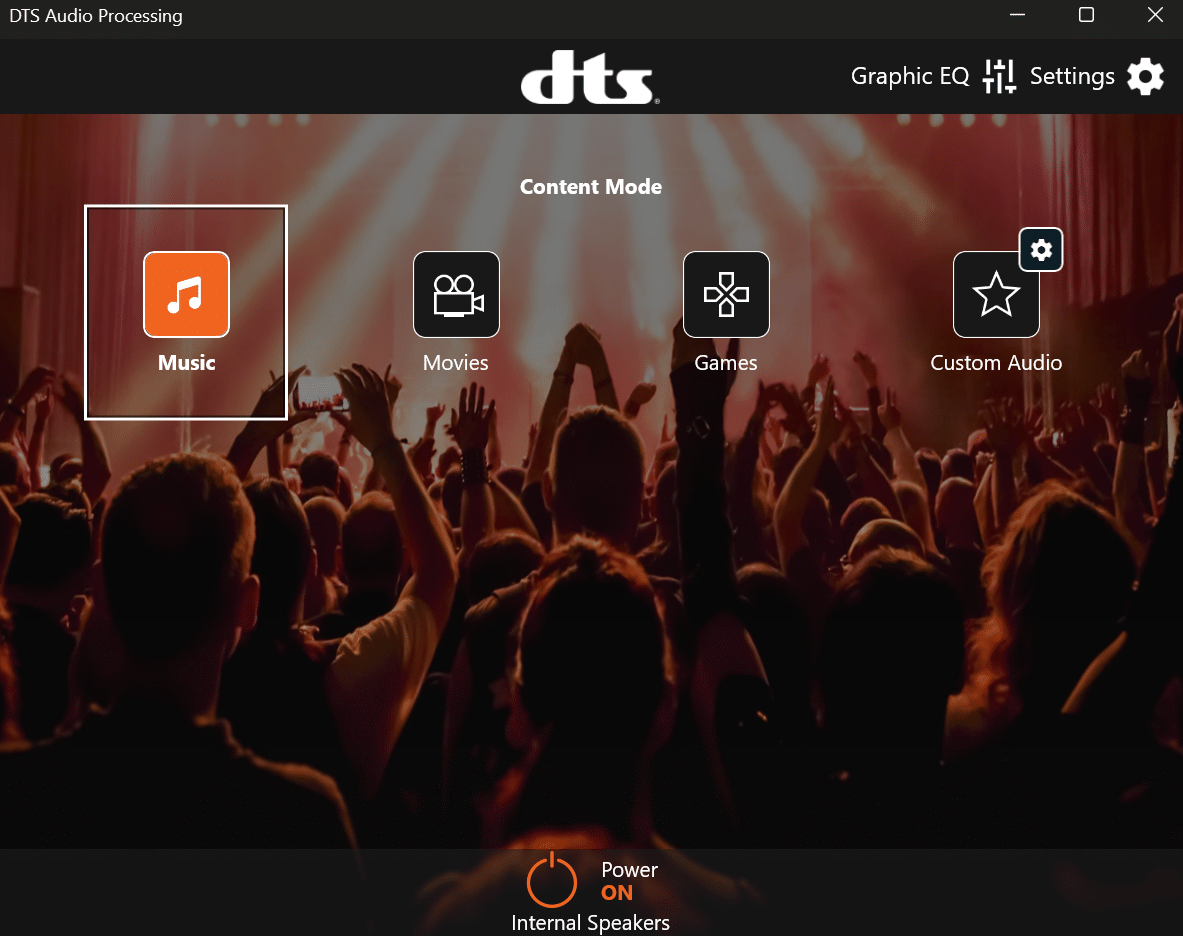

Enhanced with DTS Audio, the laptop offers a richer and more immersive audio profile, elevating both entertainment and communication experiences.

Information & Benchamark







How We Test Acer Aspire A14-61M-R8C0 ?

Aspire A14-61M-R8C0 is a mainstream laptop from Acer. As such, our laptop, based on an AMD Ryzen AI 7 350 8 cores 16 threads processor.  The ram we will be using Micron LPDDR5 8000Mhz memory kit. AMD Radeon 860M and Kingston PCIe 4.0 512GB SSD is used as well to run with benchmark. On the Comparison, we will be using ASUS Zenbook 14 (UX3480) with AMD Ryzen AI 7 345 with AMD Radeon 840M to run side by side to see perform better.

Model	Acer Aspire A14-61M-R8C0	ASUS Zenbook 14 (UX3480)
Processor	AMD Ryzen AI 7 350 – 8 Cores/16 Threads	AMD Ryzen AI 7 345 – 6 Cores/12 Threads
Ram	Micron LDDR5 16GB 8000Mhz	SK Hynix LODDR5 24GB 8000Mhz
SSD	Kingston 512GB NVMe PCIe Gen4	Micron 1TB NVMe PCIe Gen4
Graphics	AMD Radeon 860M	AMD Radeon 840M
BIOS	1.29	300
OS	Windows 11 64bits 26H2	Windows 11 64bits 26H2

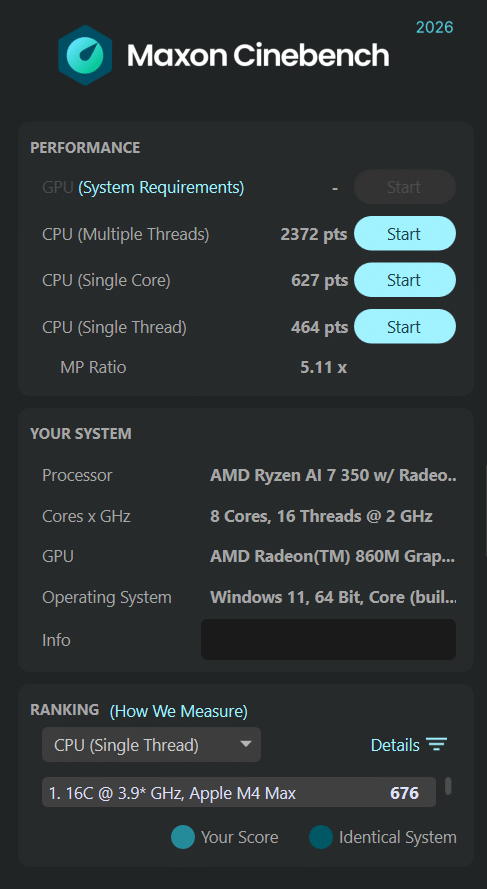

Cinebench 2026

Improvements to Cinebench Release 2026 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D‘s ability to take advantage of multiple CPU cores and modern processor features available to the average user

	Acer Aspire A14-61M-R8C0	ASUS Zenbook 14 (UX3480)
CPU Multiple Theads	2372	2240
CPU Single Core	627	555

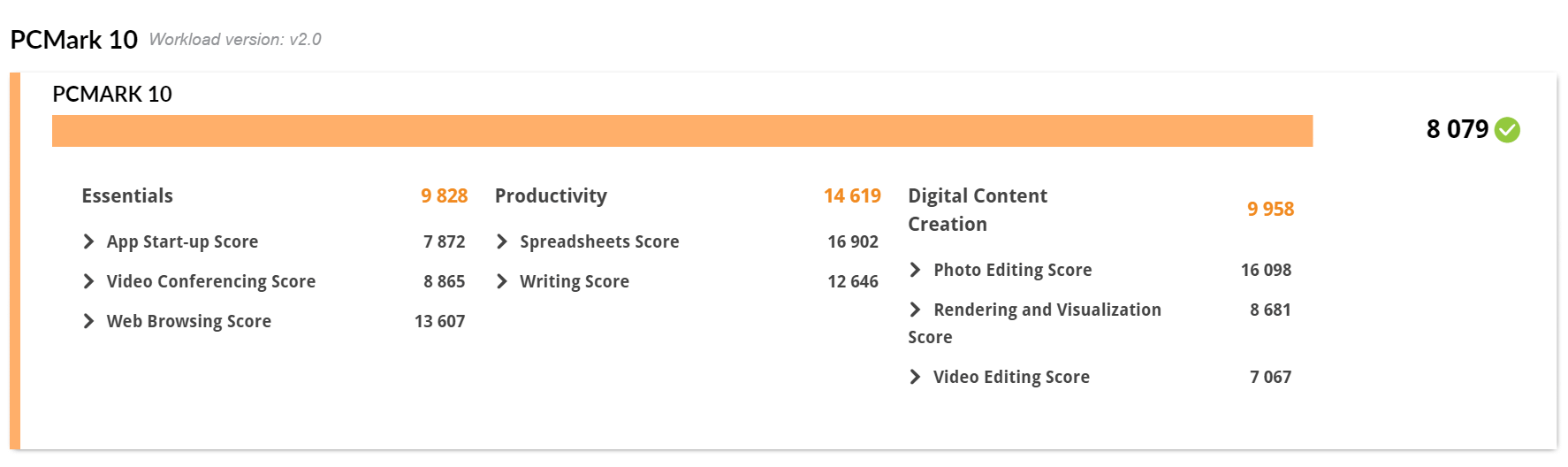

PCMark 10

PCMark 10 features a comprehensive set of tests that cover the wide variety of tasks performed in the modern workplace. With a range of performance tests, custom run options, Battery Life Profile, and new Storage benchmarks, PCMark 10 is the complete PC benchmark for the modern office

	Essentials	Productivity	Digital Content Creation	Score
Acer Aspire A14-61M-R8C0	9828	14619	9958	8079
ASUS Zenbook 14 (UX3480)	8071	11588	7110	6257

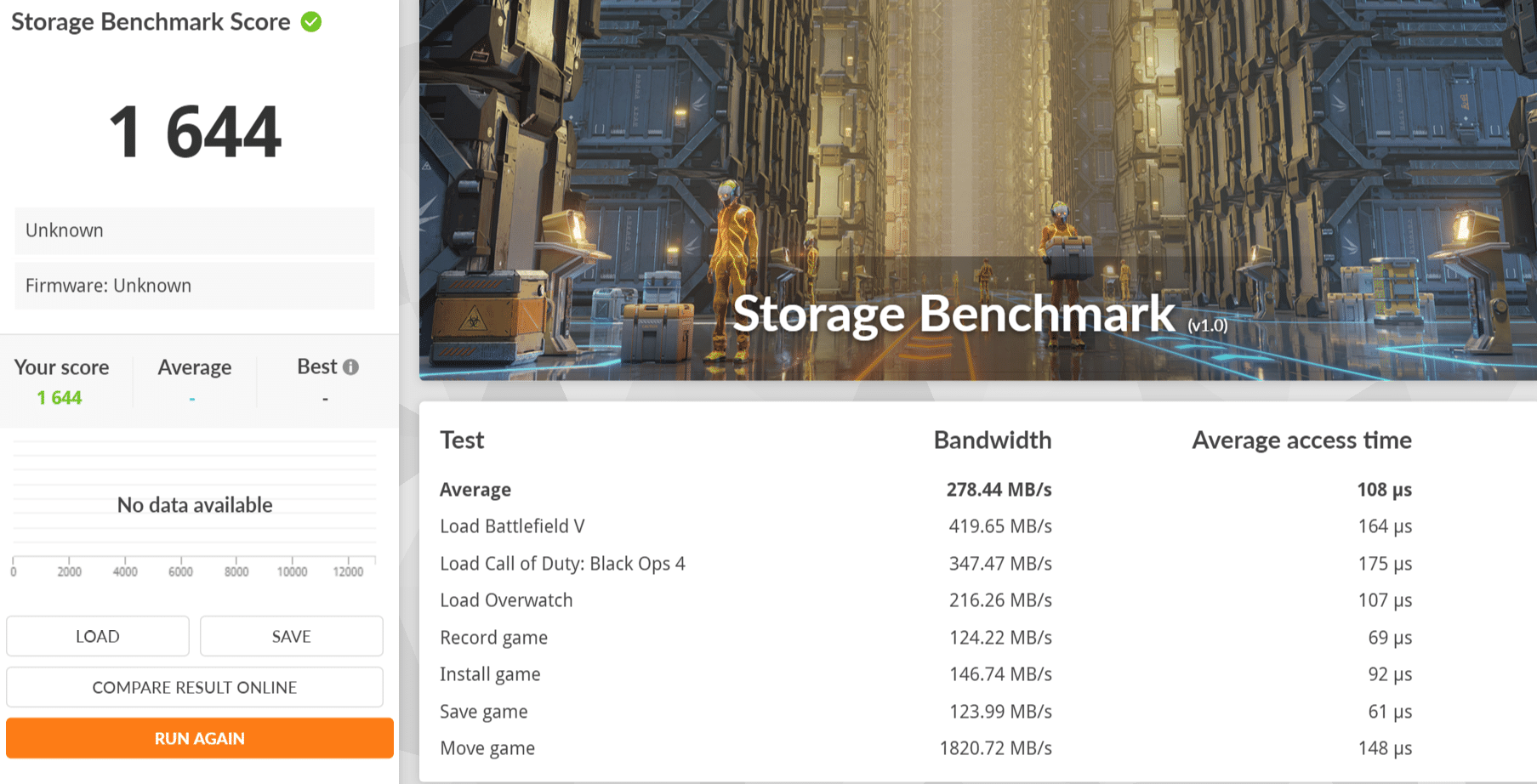

3Dmark Advanced Edition

3DMark includes everything you need to benchmark your PC and mobile devices in one app. Whether you’re gaming on a smartphone, tablet, notebook, or a desktop gaming PC, 3DMark includes a benchmark designed specifically for your hardware.

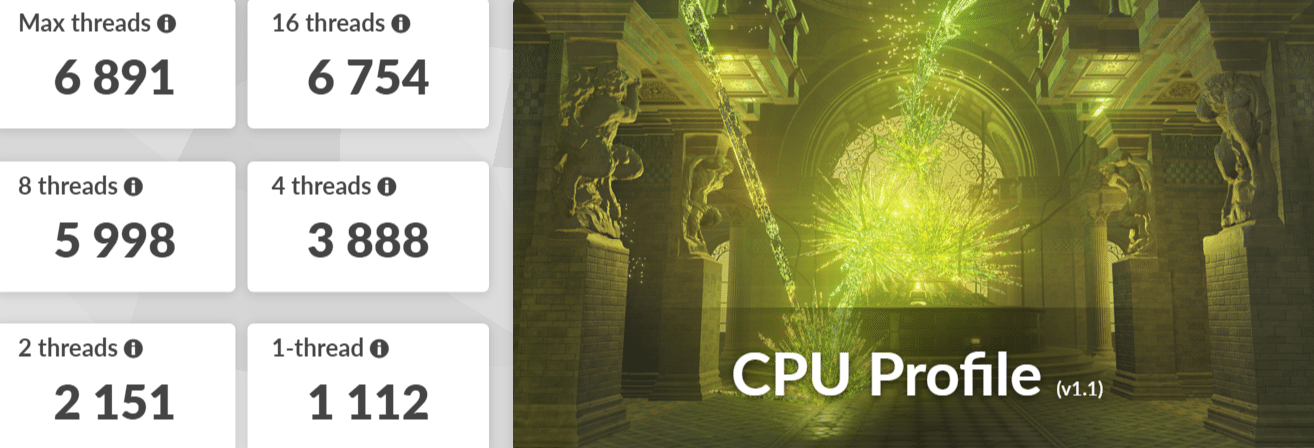

	Max Threads	16 Threads	8 Threads	4 Threads	2 Threads	1 Threads
Acer Aspire A14-61M-R8C0	6891	6754	5998	3888	2151	1112
ASUS Zenbook 14 (UX3480)	5501	5417	5035	3507	2095	1065



	Acer Aspire A14-61M-R8C0	ASUS Zenbook 14 (UX3480)

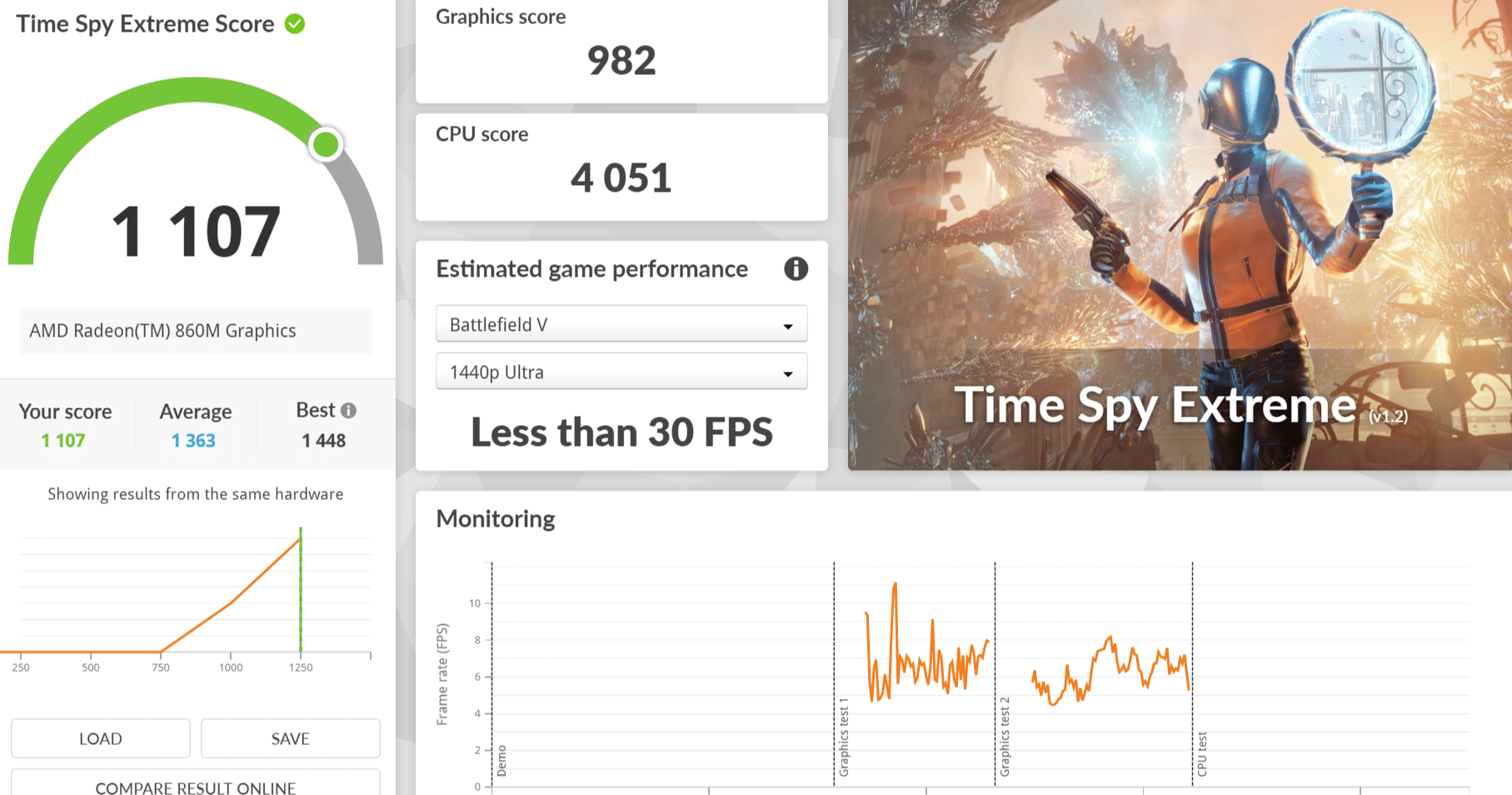

Time Spy Extreme	1107	663

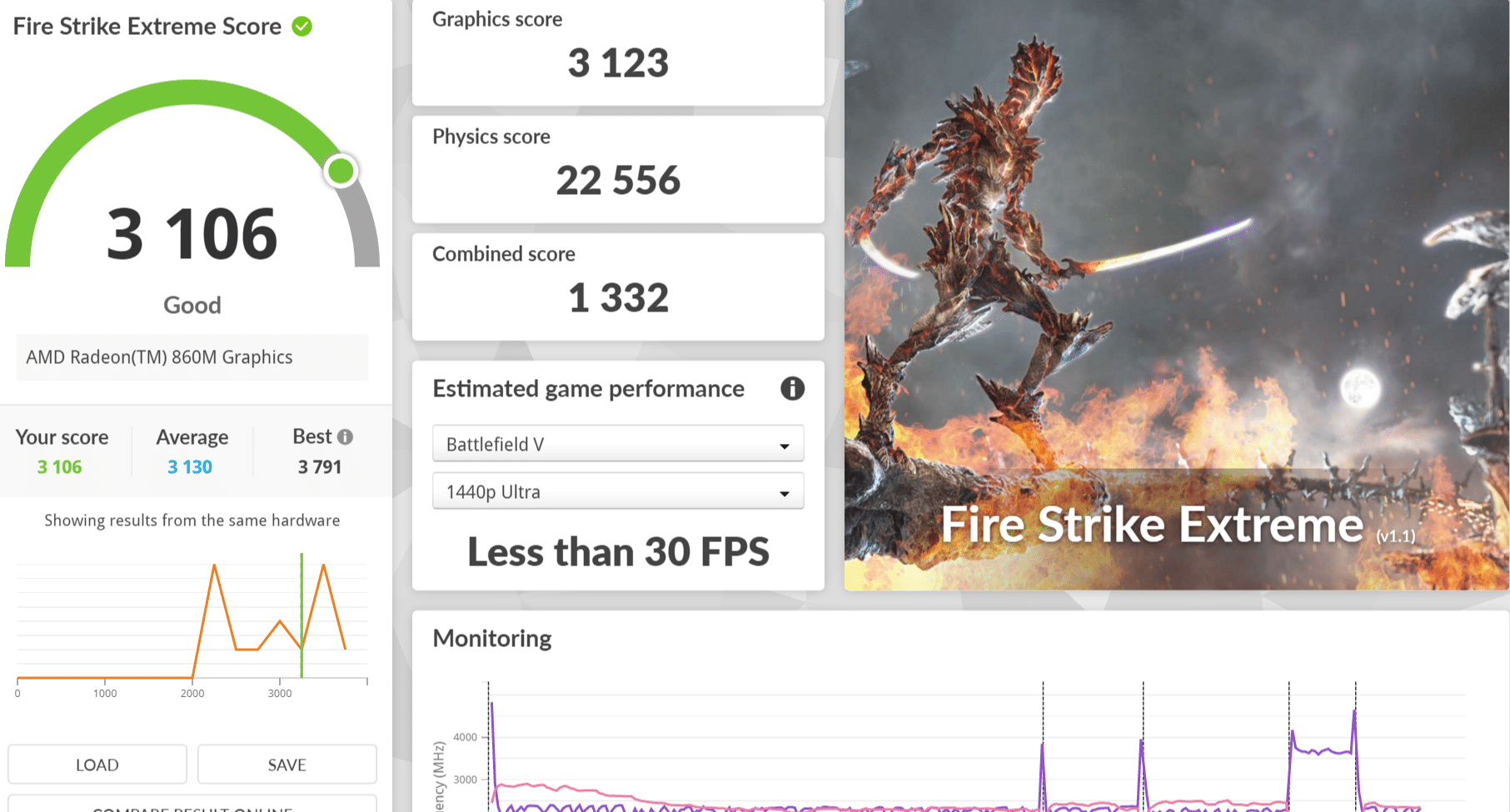

Fire Strike Extreme	3106	1873

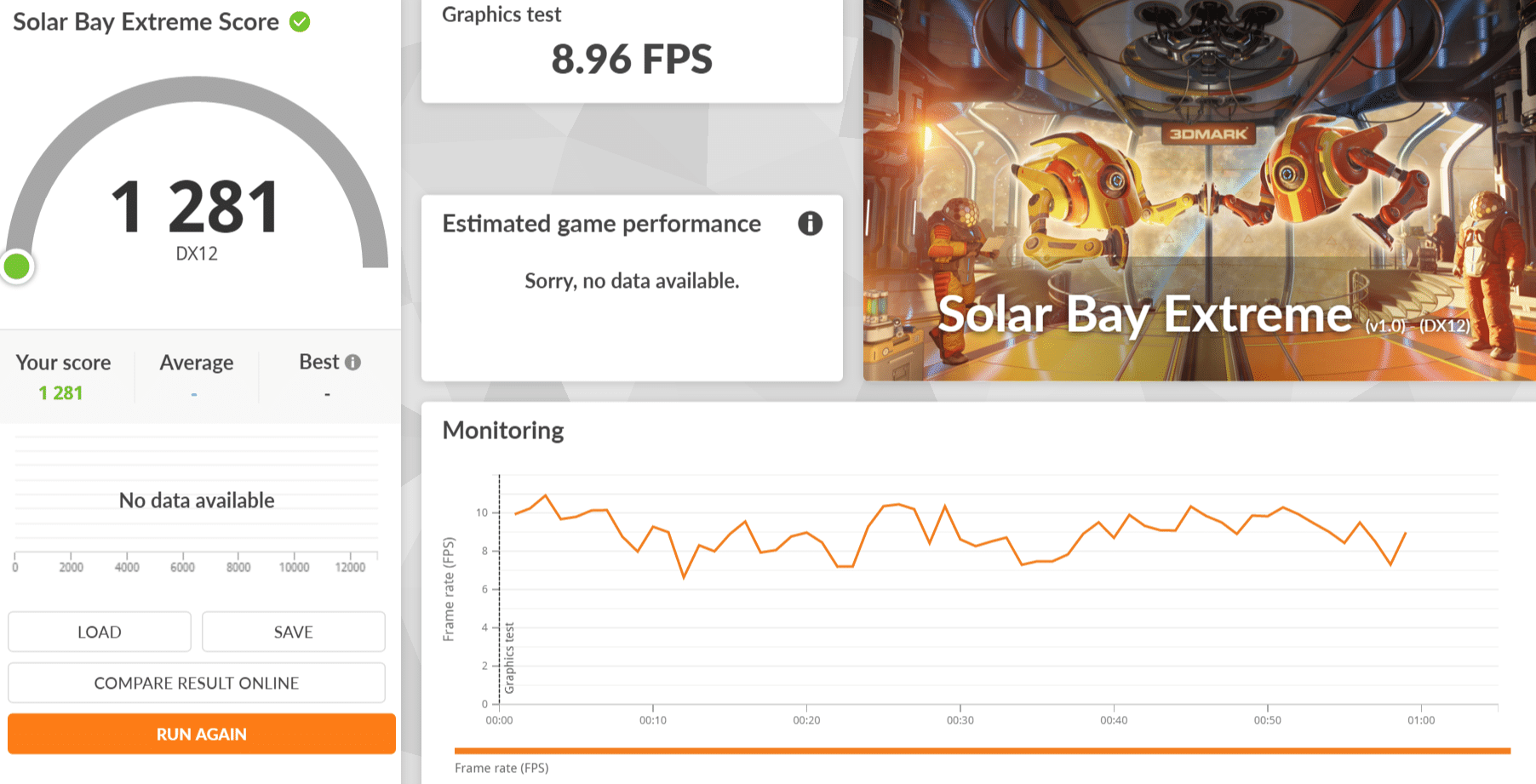

Solar Bay Extreme	1281	810

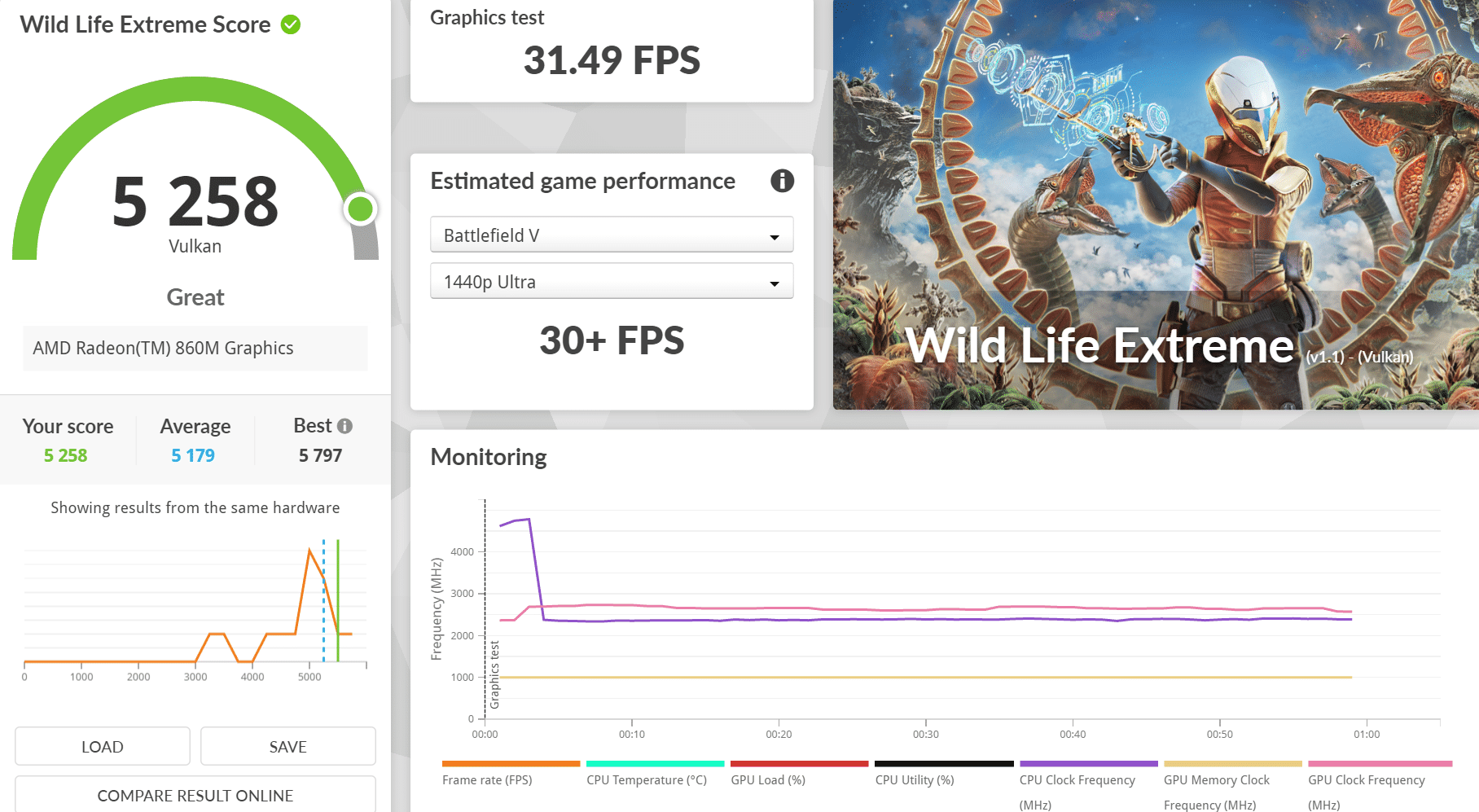

Wild Life Extreme	5258	2931

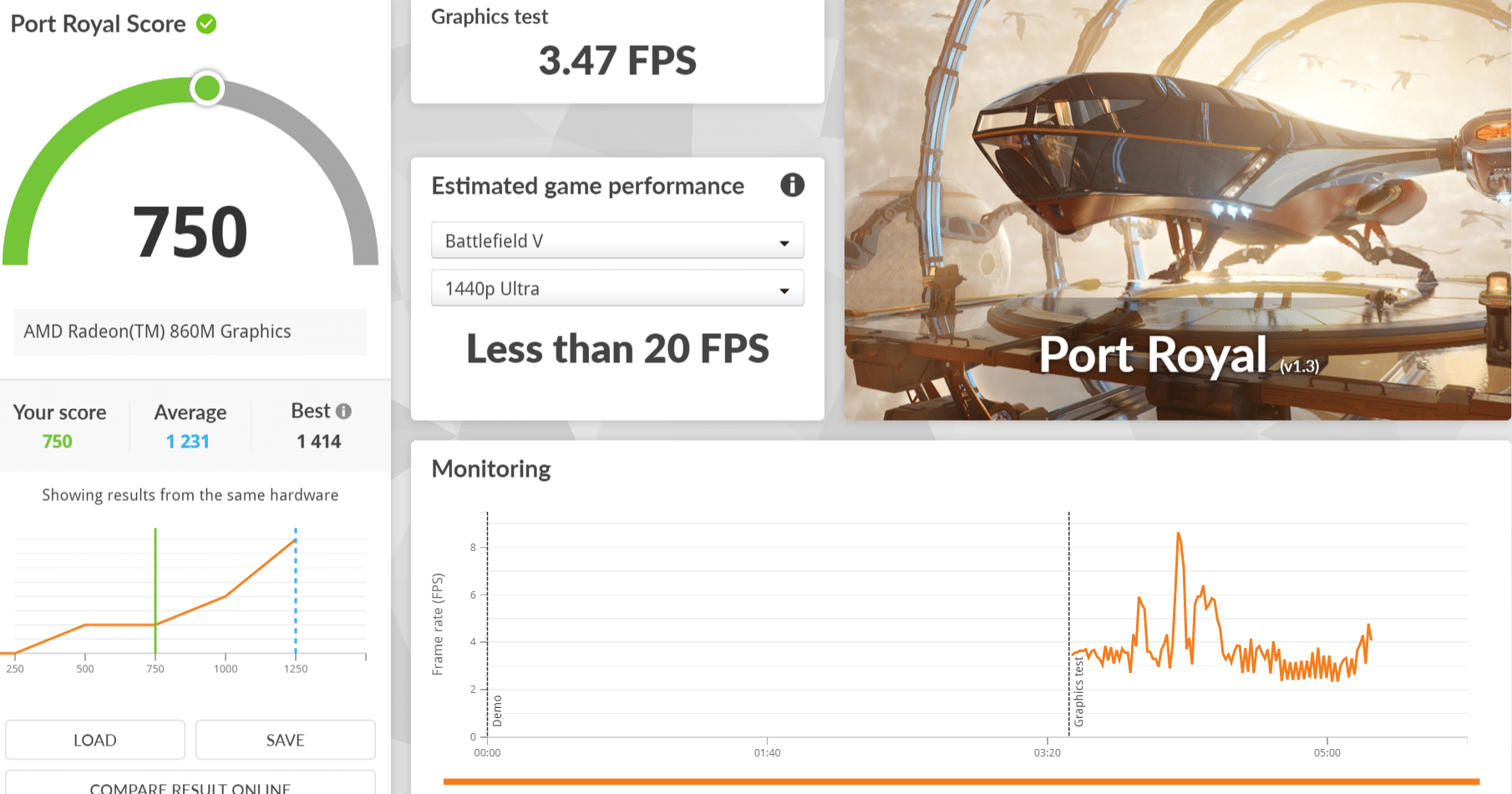

Port Royal	750	506

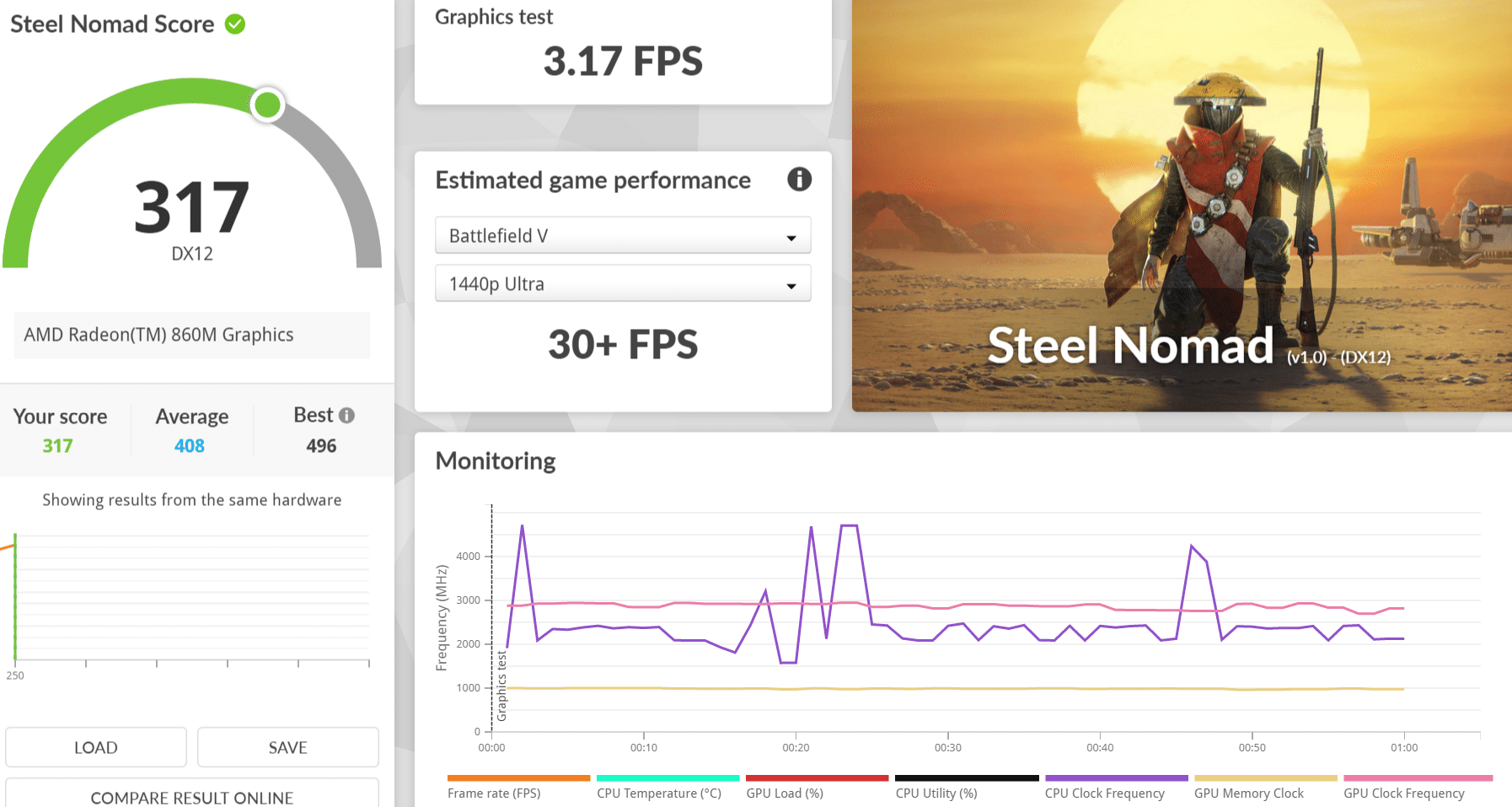

Steel Nomad	317	Not Tested

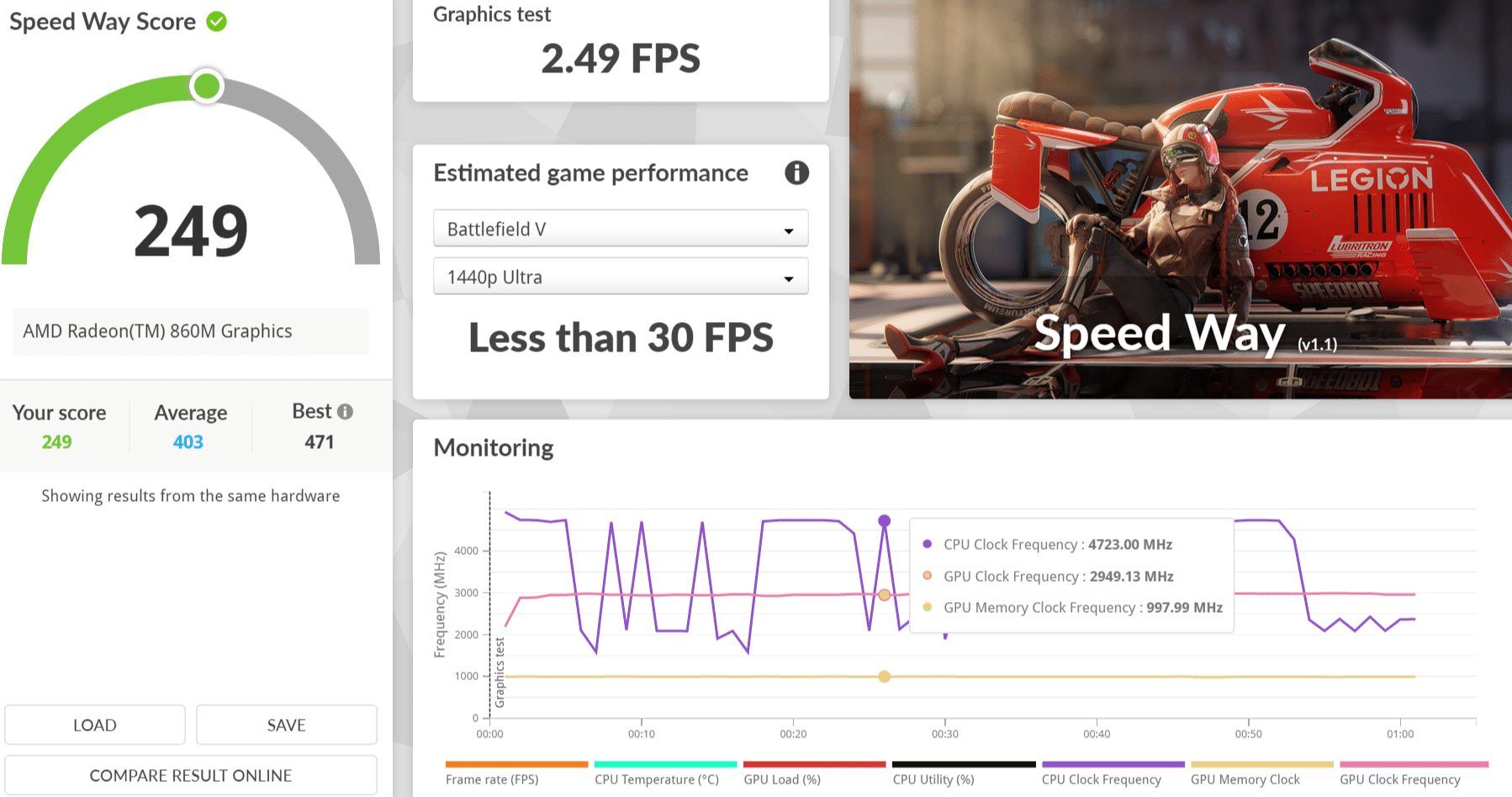

Speed Way	249	159

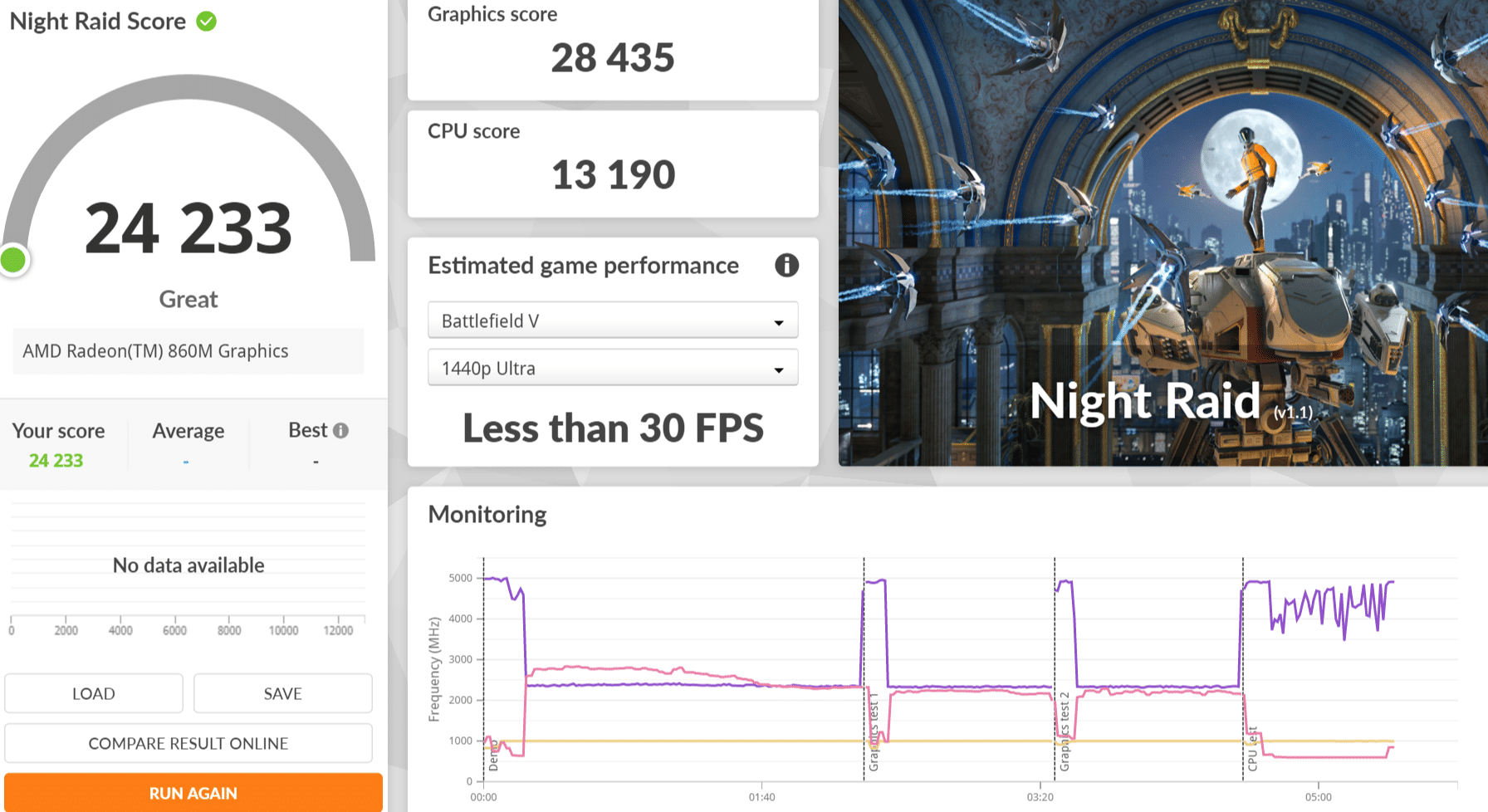

Night Raid	24233	20867

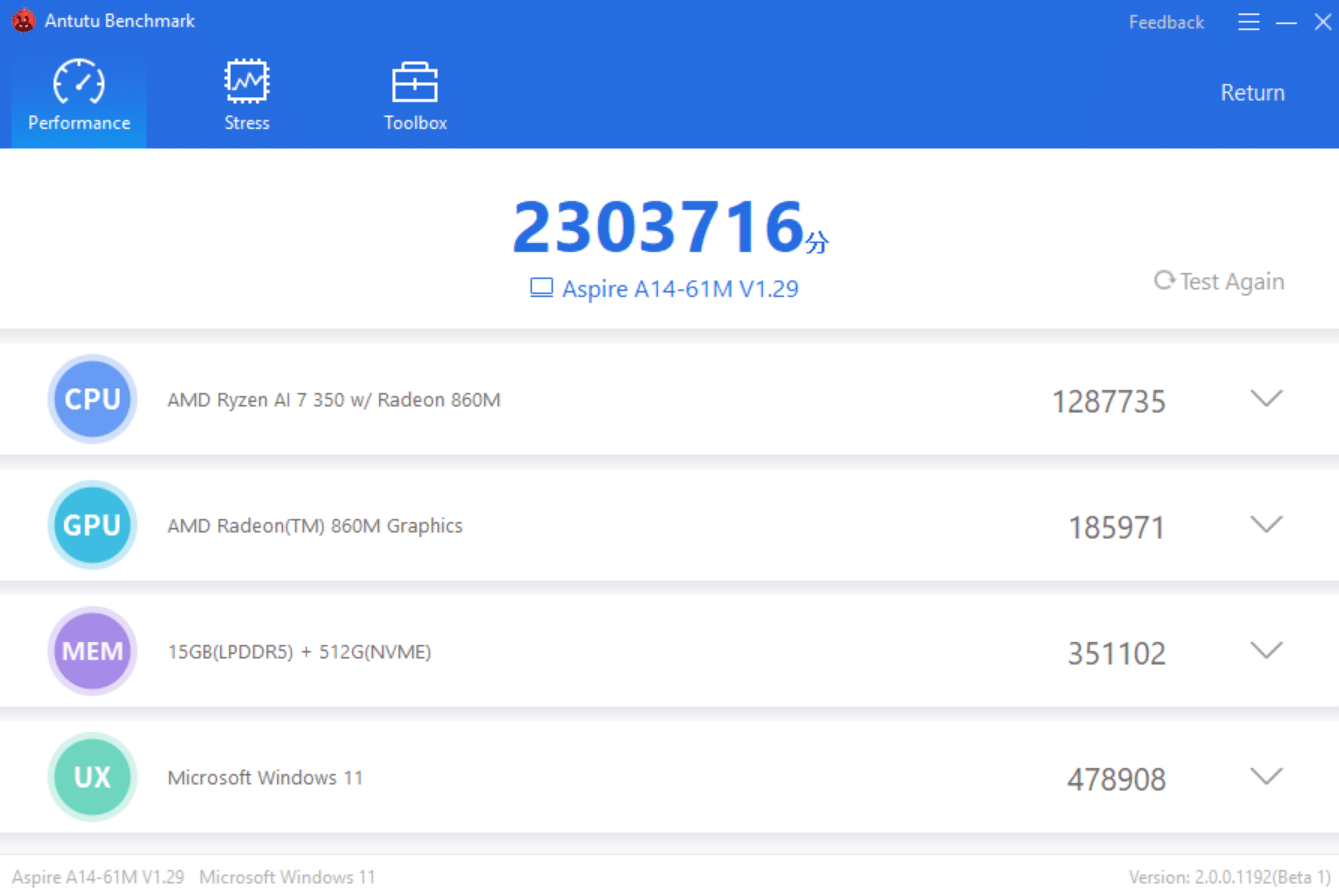

AnTuTu Benchmark

AnTuTu is a benchmarking app used to test and score the overall performance of smartphones and other devices, evaluating components like CPU, GPU, memory, and user experience (UX) through stress tests, helping users compare a phone’s raw power for tasks like gaming and multitasking, though scores should be balanced with real-world usage

	Acer Aspire A14-61M-R8C0	ASUS Zenbook 14 (UX3480)
CPU	1287735	1162311
GPU	185971	188118
MEM	351102	431220
UX	478908	447813
Total	2303716	2229462



Final Conclusion

Purchase: Official Store Click Here

The Acer Aspire A14-61M-R8C0 is a practical laptop that combines a slim design with a capable hardware configuration for everyday productivity. Powered by an AMD Ryzen 7 350 processor, paired with 16GB of RAM and a 512GB SSD, it offers a solid foundation for office applications, multitasking, web browsing, and general entertainment.

One of its key highlights is the WUXGA OLED display, which delivers deep blacks, vibrant colours, and excellent contrast. Its 1920 × 1200 resolution and 16:10 aspect ratio also provide additional vertical screen space, making it more convenient to work with documents and spreadsheets.

Other useful features include the physical camera privacy shutter, which allows users to cover the front-facing camera when it is not in use, and the dual-fan cooling system, which is designed to help manage heat generated by the internal hardware. These features add practical value to the laptop’s overall design.

Overall, the Acer Aspire A14-61M-R8C0 offers an appealing combination of performance, portability, and display technology for users seeking a laptop for work, study, and everyday computing. Its OLED panel, slim form factor, and practical privacy features help distinguish it from more basic productivity laptops.

Whether it is worth purchasing ultimately depends on its retail price, battery endurance, and real-world performance. If Acer offers it at a competitive price, the Aspire A14-61M-R8C0 is worth considering for users who prioritise a portable design, a quality display, and dependable everyday productivity.
