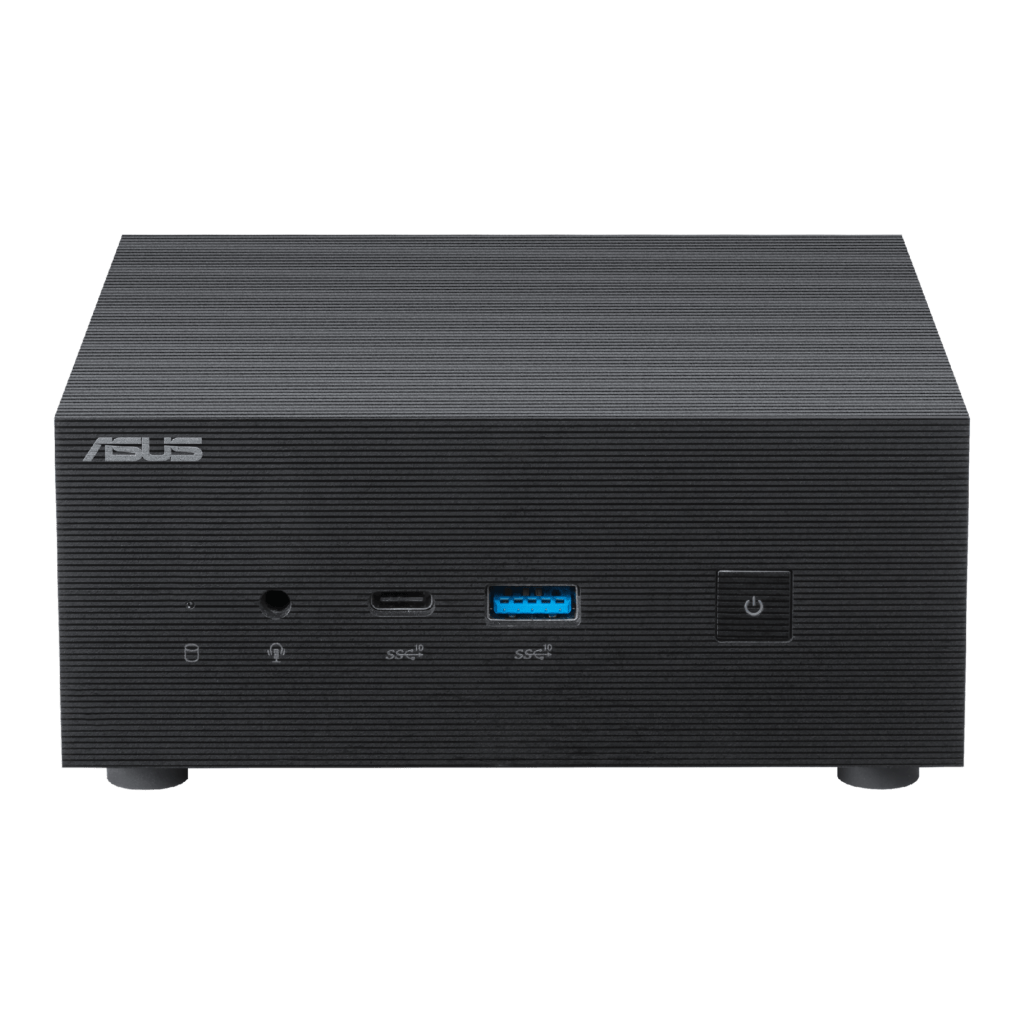

Ultracompact mini PC is powered by 11th Gen Intel Core processors with up to 64 GB RAM and Intel Iris Xe Graphics, along with a triple-storage design
KEY POINTS
- Featuring powerful 11th Gen Intel® Core™ processors and Intel Iris® Xe graphics to support up to four displays simultaneously
- High-speed WiFi 6E offers improved networking and power efficiency; plus comprehensive I/O connectivity includes a configurable port for versatility
- Triple-storage design supports up to a 2.5″ HDD and two PCIe®2 SSDs
- Extensively tested for 24/7 reliability, with ASUS Corporate Stable Model program guaranteeing 36-month supply
Singapore, Mar 23, 2022 — ASUS today announced Mini PC PN63-S1, an ultracompact mini PC powered by 11th Gen Intel® Core™ processors with up to 64 GB DDR4 RAM and Intel Iris® Xe graphics[i] for simultaneous quad-display support. PN63-S1 features a triple-storage design that supports up to a 2.5-inch HDD and one PCIe® Gen 3 x4 SSD as well as one PCIe Gen 4 x4 M.2 SSD. Networking comes in the form of high-speed WiFi 6E[ii] with improved energy efficiency, plus Intel 2.5 Gbps LAN. In addition, PN63-S1 offers comprehensive I/O connectivity, including an optional configurable port for versatility. All ASUS Mini PCs are extensively tested for 24/7 reliability, with the ASUS Corporate Stable Model program ensuring a 36-month supply guarantee.
Impressive performance
Mini PC PN63-S1 features 11th Gen Intel Core processors with Intel Iris Xe graphics. Included Intel Dynamic Tuning Technology automatically allocates power between the processor and the Intel discrete graphics to optimize performance and extend battery life. This improves CPU and GPU performance for more effective multitasking. In addition, Intel Iris Xe graphics deliver class-leading visuals and enable PN63-S1 to support up to four displays simultaneously.
Advanced self-cleaning systems
Despite its compact size, Mini PC PN63-S1 includes a proprietary self-cleaning fan module that features flat heat pipes connected to full-sized heatsinks and fan outlets to keep the CPU operating at optimum temperatures. This comprehensive cooling enables stronger performance that lasts.
Additionally, the Anti-Dust Self-Cleaning System keeps the heatsinks clean and also effectively ejects dust and other particles to prolong the lifespan of the system. Because the fans remain clean, they generate less noise.
Dependable supply and performance
Mini PC PN63-S1 is backed by the ASUS Corporate Stable Model program, which ensures a 36-month supply guarantee.
All ASUS products are extensively tested for 24/7 reliability. ASUS mini PCs undergo rigorous noise, vibration, drop, and thermal shock tests to ensure they meet exacting ASUS standards and exceed industry requirements. This means customers can be confident that their ASUS mini PC can cope with extreme conditions, ranging from dry 0° C temperatures to humid and hot environments exceeding 50° C for long periods of time. Products are also subjected to extensive 24/7 operational durability testing in a 35° C, 80% humidity environment.
Availability & Pricing
ASUS Mini PC PN63-S1 will be available from today on ASUS Official Store and authorized channel partners with prices from $639 for Barebone version and $1289 for standard version respectively
[i] Intel Iris® Xe graphics availability may vary by region
[ii] WiFi 6E availability may vary by region
Specifications
ASUS Mini PC PN63-S1
| Operating System | Windows 11 Pro Windows 11 Home Windows 10 Pro No pre-loaded OS |
| CPU | Intel® Core™ i5-1135G7 processor 2.4 GHz (8 MB Cache, up to 4.2 GHz) Intel® Core™ i7-1165G7 processor 2.8 GHz (12 MB Cache, up to 4.7 GHz) Intel® Core™ i3-1115G4 processor 3.0 GHz (6 MB Cache, up to 4.1 GHz) Intel® Core™ i5-11300H processor 3.1 GHz (8 MB Cache, up to 4.4 GHz) Intel® Core™ i7-11370H processor 3.3 GHz (12 MB Cache, up to 4.8 GHz) |
| Graphics | Integrated Intel® UHD graphics (for i3 model)
Intel® Iris® Xe graphics (for i5/i7 models)*
|
| Memory | 2 x SO-DIMM |
| Storage | 1 x M.2 2280, up to PCIe® Gen 4 x4, 512 GB~1 TB SSD*,
1 x M.2 2280, up to PCIe® Gen 3 x4, 128 GB~1 TB SSD*, 1 x 2.5” 7 mm SATA 6 Gb/s 1 TB HDD, 7200 rpm
*NVMe® support |
| Wireless Data Network | Intel® WiFi 6 (2×2) + Bluetooth® 5
or |
| LAN | 2.5G LAN, Intel I225V |
| Side(Front) I/O Ports | 1 x USB 3.2 Gen 2 Type-C®, 1 x USB 3.2 Gen 2, 1 x Audio jack (Line out/ Mic in/ Headphone out) |
| Back I/O Ports | 2 x USB 3.2 Gen 2, 1 x HDMI® 1.4, 1 x Mini DisplayPort™ 1.2, 1 x Intel (RJ45) 2.5 G LAN, 1 x configurable port (options: DisplayPort™ 1.4 / COM / VGA) 1 x DC-in, 1 x Padlock ring |
| Power Supply | 19 V DC, 4.74 A, 90 W power adapter |
| Dimensions | 120 x 130 x 58 mm |
| Weight | 900g (include 2.5” HDD) |
| Certificates | BSMI / CB / CE / FCC / UL / CCC /ENERGY STAR® / C-Tick / WiFi / RF / VCCI |
| Remarks
|
The Windows 11 upgrade will be delivered to qualifying devices late 2021 into 2022. Timing will vary by device. Certain features require specific hardware (see aka.ms/windows11-spec). |
