ASUS ZenBook 14 UM433DA Ryzen 7 3700U- Review

admin
admin

The Asus ZenBook series is a popular lineup of laptops which offers affordable as well premium range of laptops. Today, we are doing a review of Asus ZenBook 14 UM433DA. The laptop comes with the superior build quality of Asus’ ZenBook series along with an AMD 3rd generation Ryzen 7 series mobile processor.

The notebook comes with a 14-inch Full HD display with a matte coating that repels fingerprints, an AMD Ryzen 7 3700U processor paired with Radeon Vega 10 integrated graphics, 8GB DDR4 RAM Dual channel and 1TB PCIe x4 NVMe SSD as the configuration available for purchase.

ZenBook includes an ErgoLift hinge that tilts the laptop to a better typing position, a NanoEdge slim bezel display with a good webcam position, and a touchpad.

The 3D infrared (IR) camera on ZenBook 14 comes with 4-lens element and supporting 720P resolution. It has see-in-the-dark capabilities that ensure fast, reliable hands-free face login with Windows Hello.

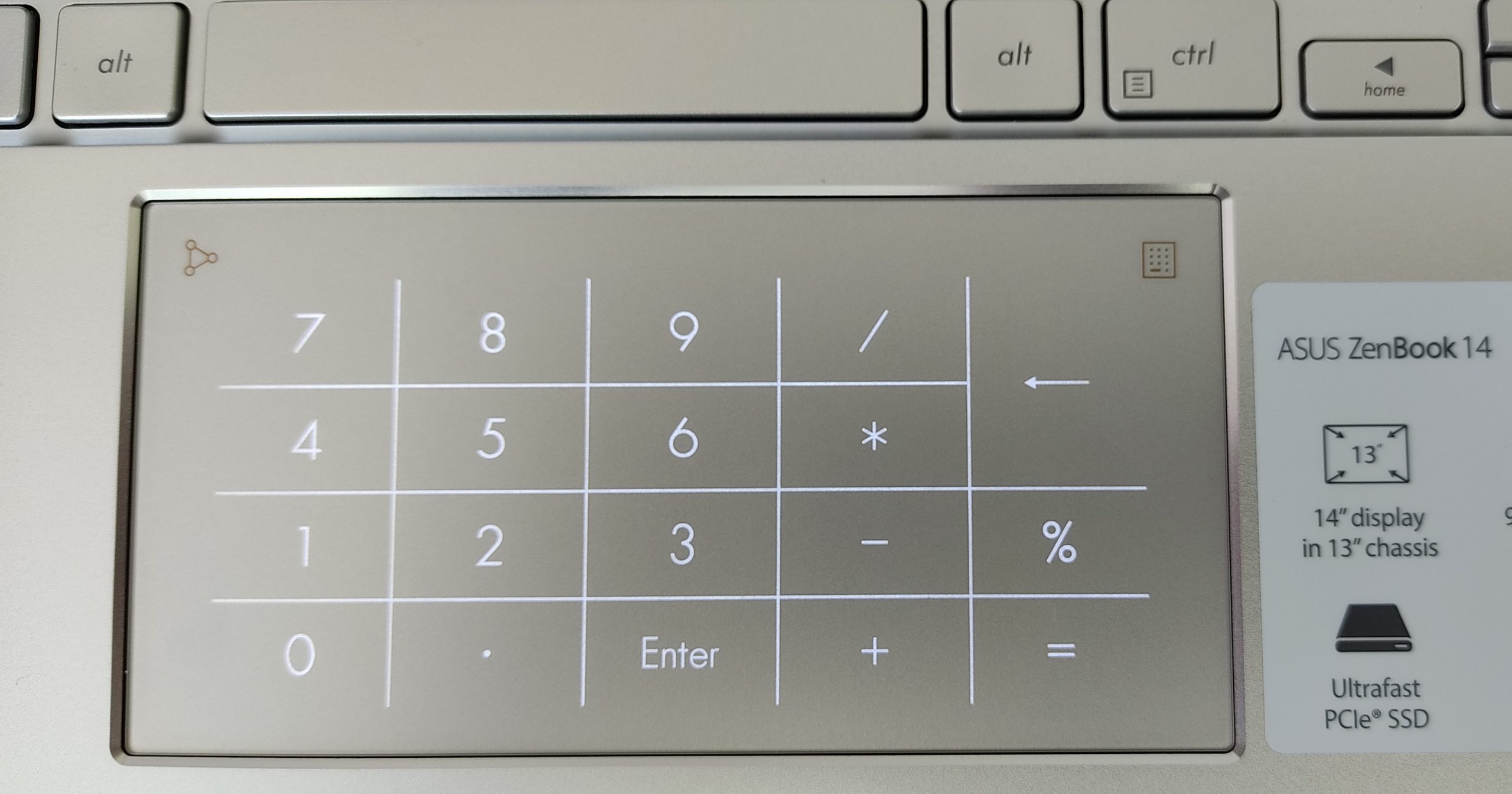

The Precision Touchpad (PTP) technology supports up to four-finger smart gestures and it uses a touchPad that is suitable for precise mouse pointer navigation due to its average size. Both left and right mouse clicks can be triggered correctly by touching or applying pressure on the pad. There’s an icon in the upper right corner that allows a number pad to be projected onto the touchPad.

The laptop comes with two bottom firing stereo speakers giving you one of the best audio experiences on a laptop. These speakers are tuned by Harmon Kardon to deliver a balanced audio experience.

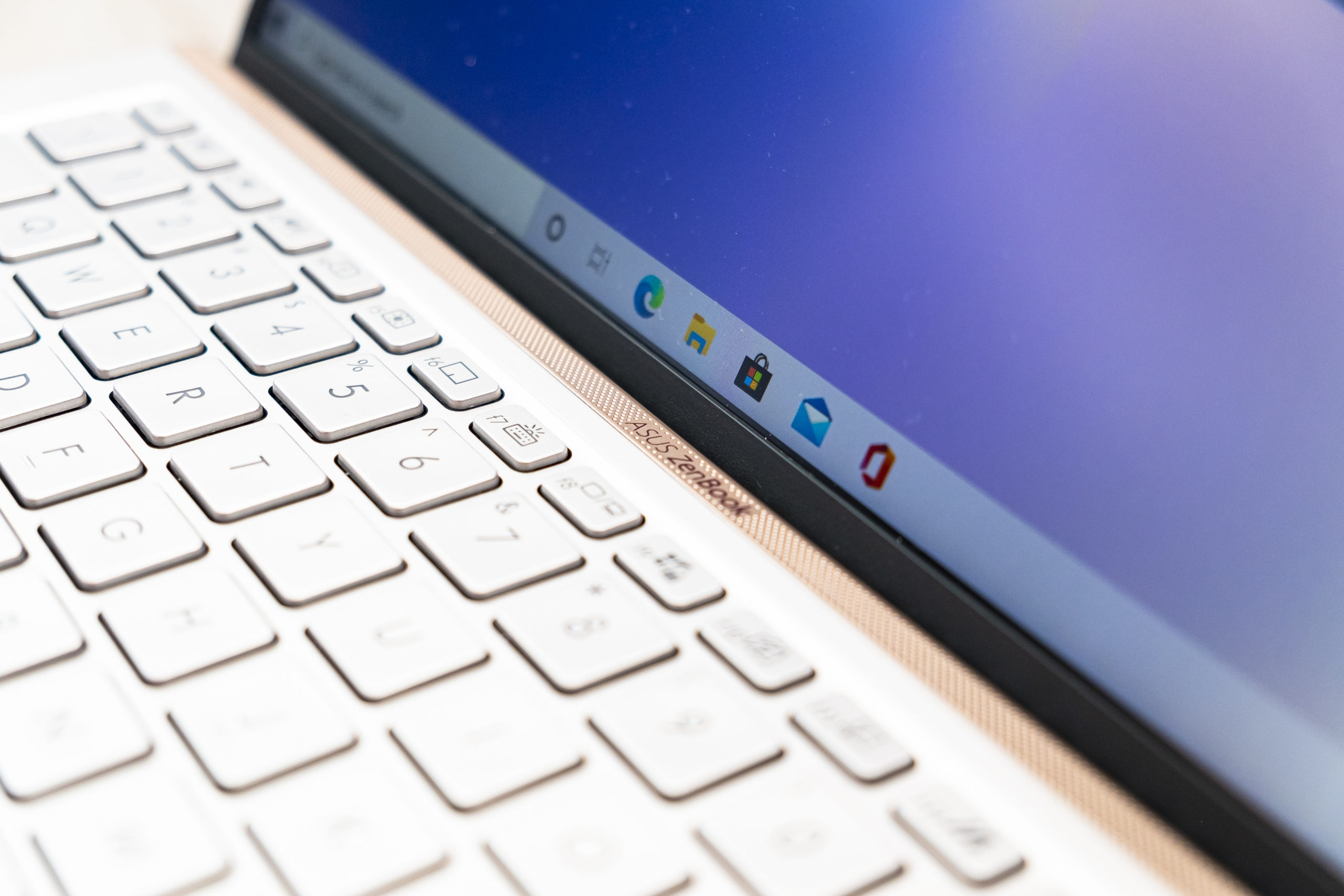

The keyboard feel excellent and are in line with the high design standards.

The weighs for the laptop is 1.15kg and has an all-metal design to give it a premium appeal. It’s ultraportable design, with an ultracompact, ultralight chassis.

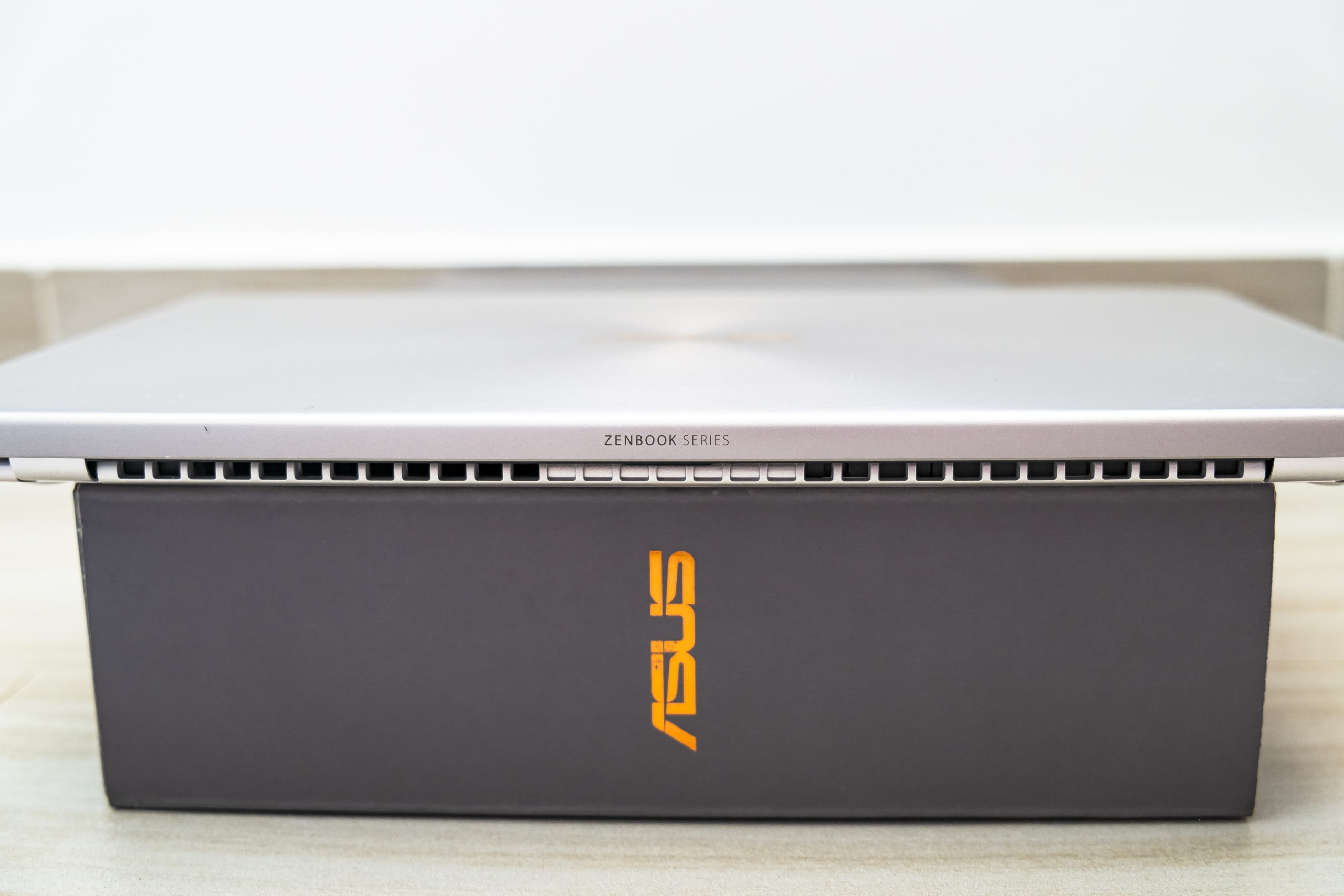

Cooling ultra-slim laptops is especially hard. When you lift the lid, the chassis raises to reveal a hidden vent that increases airflow. On the Left side hot air is blowing out through the opening and pumped out of exhausts in the edges of the chassis. Slight ramps in the outlets help direct warm air upward, separating it from the cooler layer of intake air below.

We were quite disappointed to see that the laptop uses a round pin power port instead of the USB-C standard. The laptop comes with an HDMI port, a USB-A 3.1 port, and a USB-C 3.1 port on the left side of the body.  In addition, the laptop also has a single USB-A 2.0 port, an SD Card slot and a headphone jack on the right side of the port.



Model Asus ZenBook 14 (UM433DA)
Display 14” LED-backlit Full HD (1920 x 1080) 16:9 slim-bezel NanoEdge anti-glare display
Processor AMD Ryzen R7-3700U
Graphics Integrated AMD Radeon RX Vega 10 Graphics
Storage 1TB PCIe x4 SSD
Memory 8GB LPDDR34 2400MHz
Ports
  • USB 3.1 Gen 2 Type-C (up to 10 Gbps)
  • USB Gen 2 Type-A (Up to 5Gbps)
  • USB 2.0
  • HDMI
  • MicroSD card reader
  • Audio jack
Wi-Fi and Bluetooth
  • Wi-Fi 5 (dual-band gigabit-class 802.11ac)
  • Bluetooth 4.2
Software Windows 10 Home (64bit)
Battery
  • 50Wh 3-cell lithium-polymer battery
  • 45W power adapter
Dimensions 31.9cm x 19.9cm x 16.9cm; 1.15kg
Audio
  • Dual-speaker audio system
  • ASUS SonicMaster stereo audio system by Harman Kardon
  • Array microphone with voice-recognition support: Cortana
Keyboard and Trackpad
  • Backlit Chiclet single-color keypad
  • Precision touchpad



CPUZ & GPUZ



Benchmark:

We will be using HP envy X360 “Ryzen 5 2500U” for our comparison against ASUS Zenbook “Ryzen 7 3700U” in our benchmark test.

Model ASUS Zenbook 14 UM433DA HP Envy x360
CPU AMD Ryzen 7 3700U AMD Ryzen 5 2500U
GPU AMD Radeon RX Vega 10 AMD Radeon RX Vega 8
Storage Samsung PM981 1TB NVME M.2 Samsung 840EVO 256Gb SATA M.2
RAM 8GB LDDR4 2400Mhz Dual-Channel 8GB LDDR4 2400Mhz Dual- Channel
Driver AMD Adrenalin 2020 Edition 20.4.2 AMD Adrenalin 2020 Edition 20.4.2



PCMark 10

PCMark 10 features a comprehensive set of tests that cover the wide variety of tasks performed in the modern workplace. With a range of performance tests, custom run options, Battery Life Profile, and new Storage benchmarks, PCMark 10 is the complete PC benchmark for the modern office.

Essentials Productivity Digital Content Creation Score
Zenbook 14 6992 5547 3438 3662
Envy X360 6698 5313 2973 3390

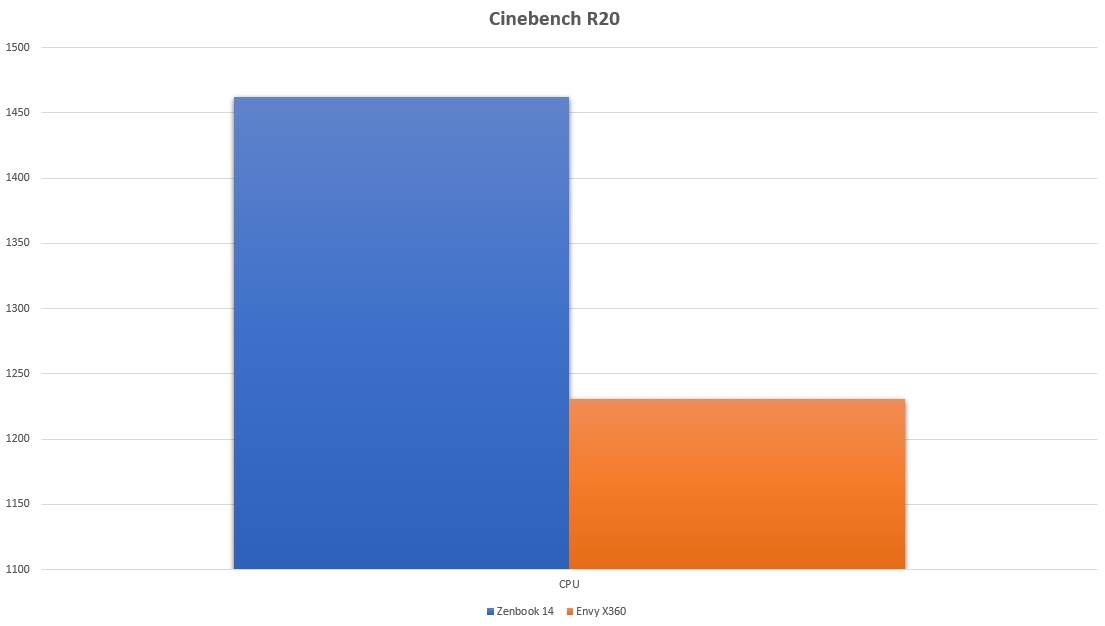

Cinebench R20

Improvements to Cinebench Release 20 reflect the overall advancements to CPU and rendering technology in recent years, providing a more accurate measurement of Cinema 4D‘s ability to take advantage of multiple CPU cores and modern processor features available to the average user.

CPU
Zenbook 14 1462
Envy X360 1231

Geekbench 5

Geekbench 5 measures your processor’s single-core and multi-core power, for everything from checking your email to taking a picture to playing music, or all of it at once. Geekbench 5’s CPU benchmark measures performance in new application areas including Augmented Reality and Machine Learning, so you’ll know how close your system is to the cutting-edge.

Single-Core Multi-Core Computing
Zenbook 14 867 3052 9248
Envy X360 831 2327 7958

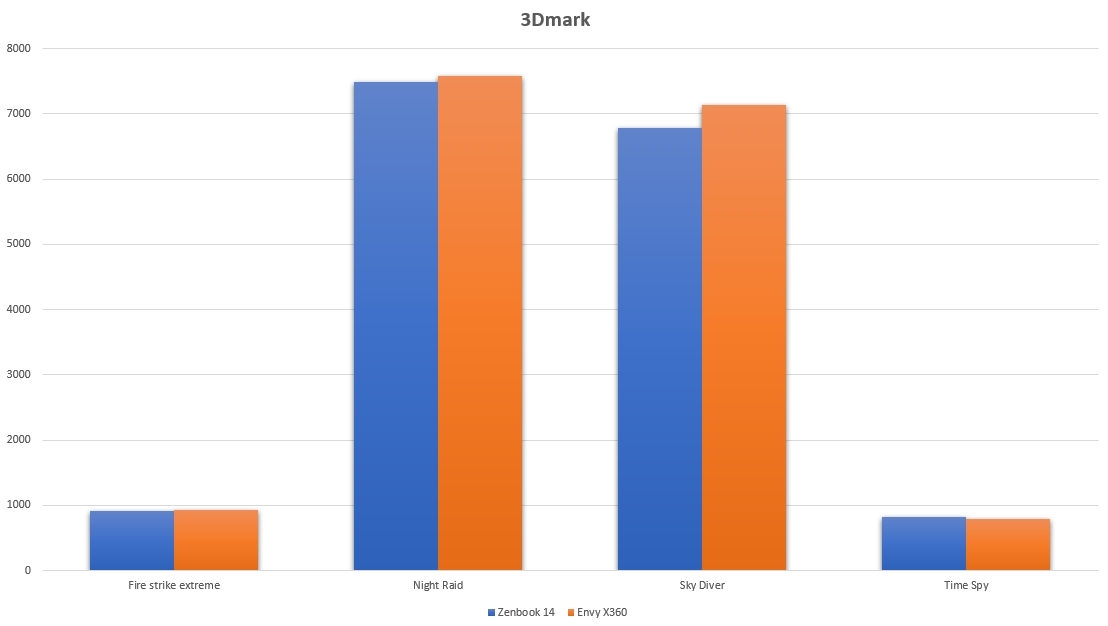

3Dmark Advanced Edition

3DMark includes everything you need to benchmark your PC and mobile devices in one app. Whether you’re gaming on a smartphone, tablet, notebook, or a desktop gaming PC, 3DMark includes a benchmark designed specifically for your hardware.

Fire strike extreme Night Raid Sky Diver Time Spy
Zenbook 14 907 7485 6779 827
Envy X360 936 7580 7139 789

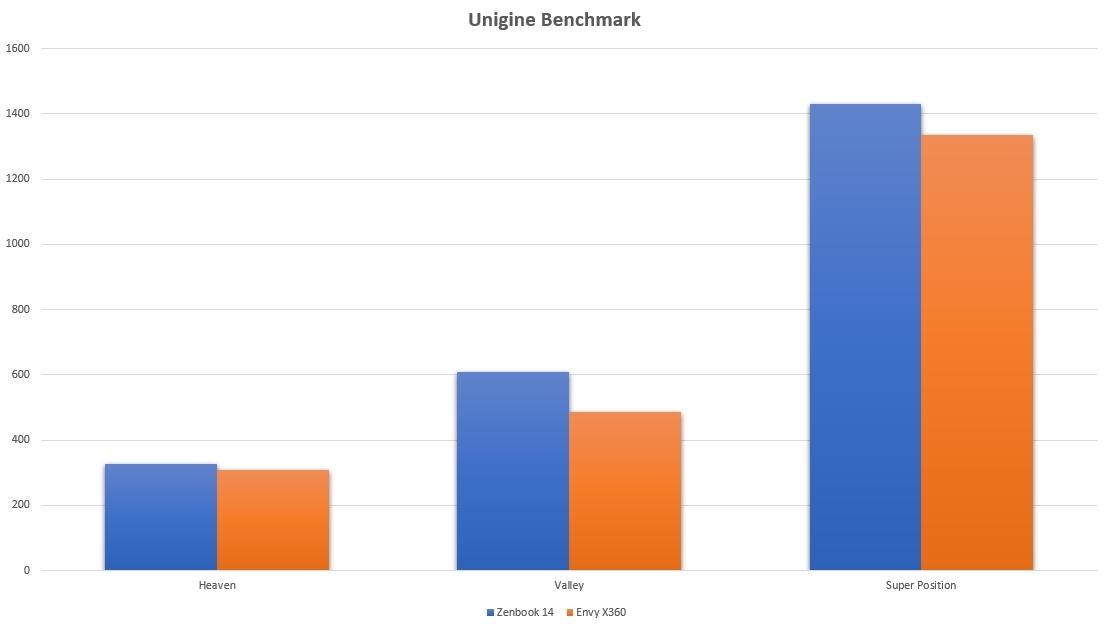

Unigine Benchmark

Benchmark is a GPU-intensive benchmark that hammers graphics cards to the limits. This powerful tool can be effectively used to determine the stability of a GPU under extremely stressful conditions, as well as check the cooling system’s potential under maximum heat output.

Heaven Valley Super Position
Zenbook 14 326 610 1432
Envy X360 307 486 1335

ASUS Zenbook UM433DA

1398
9.3

Quality

9.5/10

Value

9.0/10

Design

9.5/10

Performance

9.0/10

Pros

  • Good Performance
  • Light Weight
  • Slim Design
  • Extreme Fast Storage
  • Affordable with 2 Years warranty

Cons

  • Should include Intel AX200 Wifi chip
  • No Type C charging port
  • Full load on high temperature
