Axiomtek’s Quad-View 3.5” Embedded Board with AMD Ryzen™ Embedded V1807B/V1605B Processor – CAPA13R


Axiomtek – a world-renowned leader relentlessly devoted in the research, development and manufacture of series of innovative and reliable industrial computer products of high efficiency – is pleased to introduce the CAPA13R, a high-performance 3.5” embedded board with quad displays. The CAPA13R is powered by the onboard AMD RYZEN™ Embedded V1807B/V1605B processor with AMD Radeon™ RX Vega graphics. The embedded board is well-suited for graphics-intensive applications such as medical imaging, video surveillance, 3D simulators, optical quality control, digital signage, kiosks/POI, thin clients, and more.

The integrated AMD Radeon™ RX Vega graphics with support of DirectX 12 and OpenGL 4.5 deliver powerful 3D and 4K graphics to the embedded devices. The CAPA13R offers quad display capability through two HDMI, one DisplayPort and one LVDS interfaces. Its onboard CPU is attached on the rear side of the board, which can aid with heat dissipation and offers flexibility for easy system integration and minimum maintenance. Moreover, the CAPA13R offers multiple expansion interfaces with one M.2 Key E slot for wireless modules and one M.2 key B slot for storage cards. One 260-pin SO-DIMM socket on the CAPA13R supports up to 16GB of DDR4-2400 (V1605B) and DDR4-3200 (V1807B) memory. The system has a +12V DC power input.

“The new AMD RYZEN™ Embedded V1000 series is the best choice for embedded solutions that require a high-resolution display and full-graphics feature, and offers the benefits of a smaller footprint,” said Michelle Mi, Product Manager of Embedded Board and Technology Business Unit at Axiomtek. “The CAPA13R has four GbE LAN ports to connect with industrial cameras for machine vision applications and four independent displays for graphics-oriented appreciations, like digital signage, gaming, infotainment, etc. Its scalability, optimized graphics and low profile design offers a high level of versatility to help system integrators drive their projects forward.”

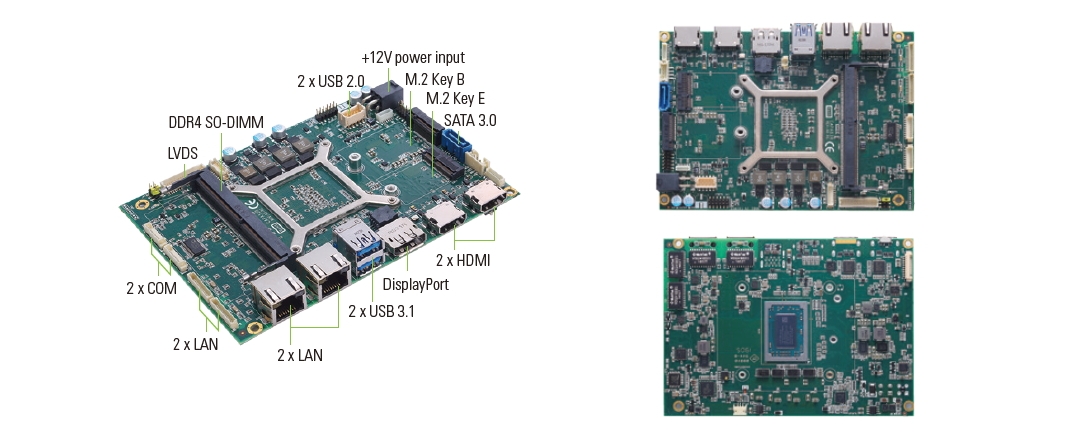

To satisfy increasing demands of connecting more peripheral devices, the CAPA13R provides two USB 3.1 Gen2, two USB 2.0, four GbE LAN, one RS-232, one RS-232/422/485, two HDMI, one DisplayPort, one LVDS, one SATA-600, 8-channel DIO, one HD audio, and an SMBus compatible with I2C. Furthermore, it supports hardware monitoring features to monitor temperature, voltage, fan speed and more. The built-in watchdog timer keeps the system running smoothly. Additionally, the CAPA13R supports Windows® 10.


Advanced Features:

  • AMD® RYZEN™ Embedded V1807B and V1605B processors
  • One DDR4 SO-DIMM for up to 16GB of memory
  • Four GbE LAN
  • Two HDMI, one DisplayPort and one LVDS
  • M.2 Key E (PCIe x1, USB 2.0)
  • M.2 Key B (SATA default, PCIe x2 for option, USB 2.0)
