ASUS Zenfone 3 Deluxe – Design & UI Review [Part 1 of 3]

The ASUS Zenfone 3 Deluxe [ZS570KL] came with 6GB LPDDR4 1866Mhz of RAM and a Qualcomm Snapdragon 820 processor running at 2.15GHz, but when clearing the RAM, only about 4GB of RAM was available for use.

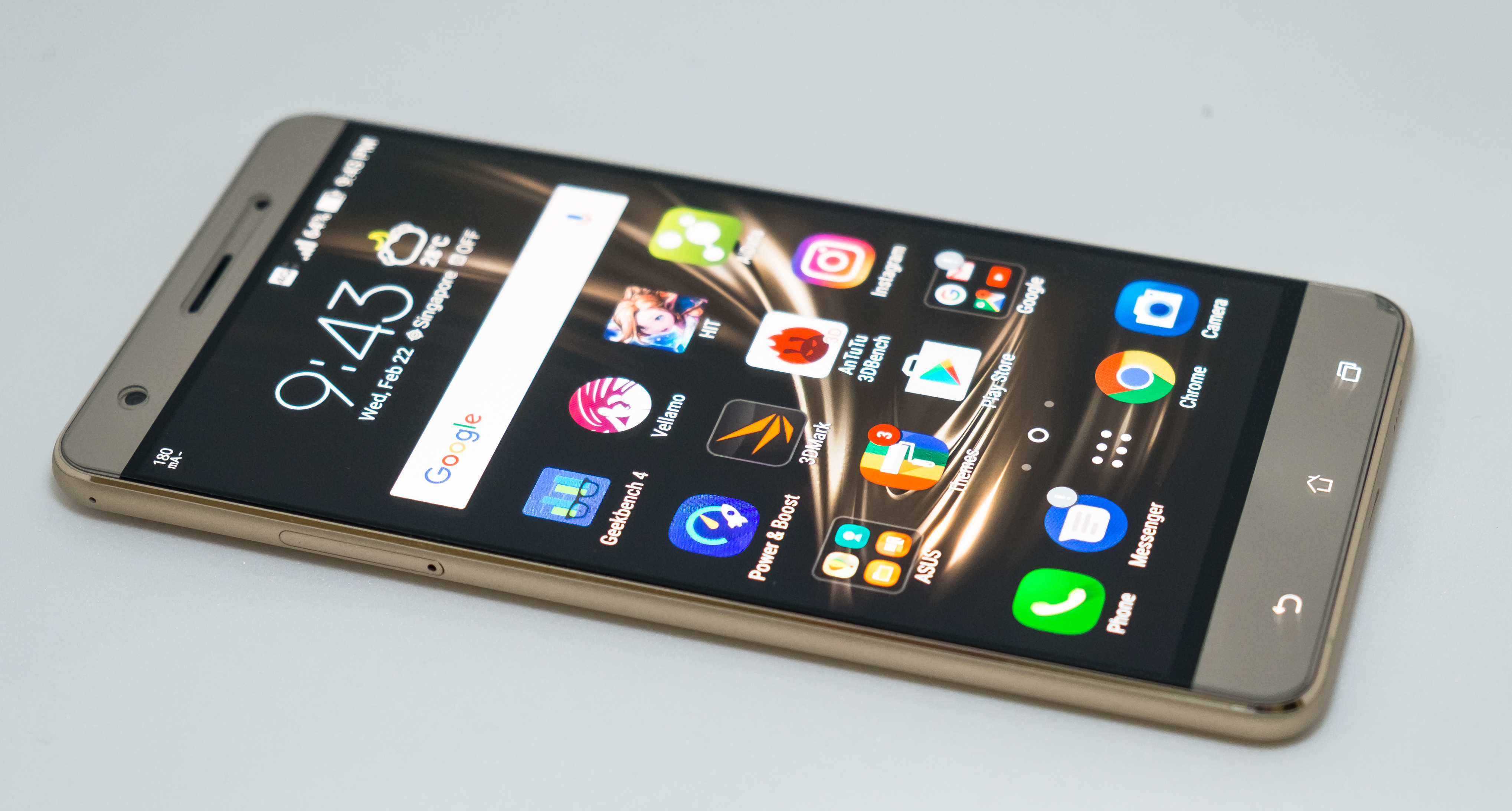

Let’s us unbox the beast.

The Zenfone 3 Deluxe have a large Samsung Super AMOLED display panel of 5.7-inch phone and the resolution of 1920 x 1080 support Flicker-Free frame refresh rate of 60Hz. The physical structure is superbly built and made from metal and Gorilla Glass 4. The result is a very shiny, very sleek block that is highly eye-catching and premium design.

You won’t find any antenna lines as is seen with every other smartphone with a metal body and ASUS claims PureMetal™ technology able to integrate the antennas in such a way as to make them invisible.


Display 5.7-inch Samsung Super AMOLED display
1920 X 1080  resolution, 386 ppi
Processor 2.15 GHz quad-core Qualcomm Snapdragon 820
Adreno 530 GPU
Storage 64 GB
Expandable via microSD card up to 256 GB
Camera 23 MP rear camera, f/2.0 aperture, OIS, laser autofocus, dual LED flash
8 MP front-facing camera, f/2.0 aperture
Connectivity Wi-Fi 802.11 a/b/g/n/ac
Bluetooth 4.2
USB Type-C (USB 3.0) Quick Charge 3.0
Battery 3,000 mAh
Software Android 6.01 Marshmallow
Dimensions 156.4 x 77.4 x 7.5 mm
170 grams

The Super AMOLED Display provides an exceptional viewing experience for you. It offers a wide range of colors with an incredible degree of color clarity which translates into far greater resolution.

The Zenfone 3 Deluxe Always On Display (AOD) keeps the screen on even when you turn off the display of your phone. A little area is lit-up with the time, date, battery level, and notifications for emails or incoming messages.

The display only uses eight colors when it displays simple information, including the time and date. If more images or colors are to be displayed on the screen, then bit depth is increased to 16 million colors, requiring a little more power. The AOD feature hardly consumes any additional battery juice, making it one of the favorite new features.

Customize Zenfone 3 Deluxe Always On Display:

ASUS Zenfone 3 Deluxe Always On Display packed with a ton of customizations. Before, going into customizations, here is how to enable / disable Always On Display.

  • Go to Settings  Always On Display.
  • Once in, toggle it on or off to enable or disable the feature.

When you have enabled the feature, you can customize it to your liking.

Below is the rear camera – The location of this camera is not the most ideal, because of the thumbs might touch on the camera when unlocking the phone.

At the bottom you can find microphone, USB Type-C port and a single mono speaker.

ASUS ZenUI 3.0

ZenUI 3.0 includes brand-new ideas to make your everyday mobile life more fun and productive.

ZenUI Themes
Hundreds of beautifully-crafted designer themes are available to give your ZenFone a makeover. Take things further by creating unique themes using Theme DIY.

Weather animation
Get that real-time weather feel as the sunshine brightens, raindrops patter, or cloudy skies gather on your lock screen.


Boost your Zenfone performance
Optimize your device using Mobile Manager. Manage data usage, save power, boost your phone’s performance, and setup your phone’s privacy features using this all-in-one system optimizer.


Game Genie
Search the latest gaming tips and tricks, boost your mobile performance for lag-free speeds, and broadcast gameplay live over Twitch or YouTube.

>>> Next Page

ASUS Zenfone 3 Deluxe – Design & UI Review [Part 1 of 3]
  • Award - 88

Final words and conclusion:

- Excellent display color
- Huge display screen
- MicroSD card & Sim card slots
- Full metal design
- Feel premium
- Invisible antenna

- Delay unlock phone for fingerprint scanner
- Phone too big for comfort on one hand operation
- Contain bloatware [Stay tuned for Android 7 to remove bloatware]
- Fingerprint scanner too near camera
